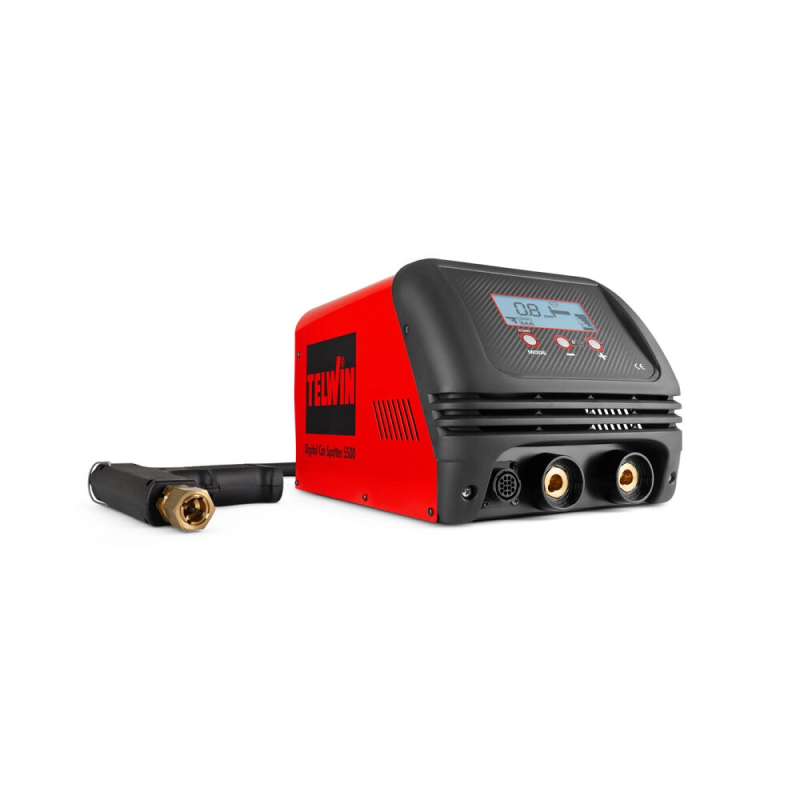

TELWIN 415V Automatic LCD Display Digital Car Spotter DIGICARSPOT5500-AU/T
Features

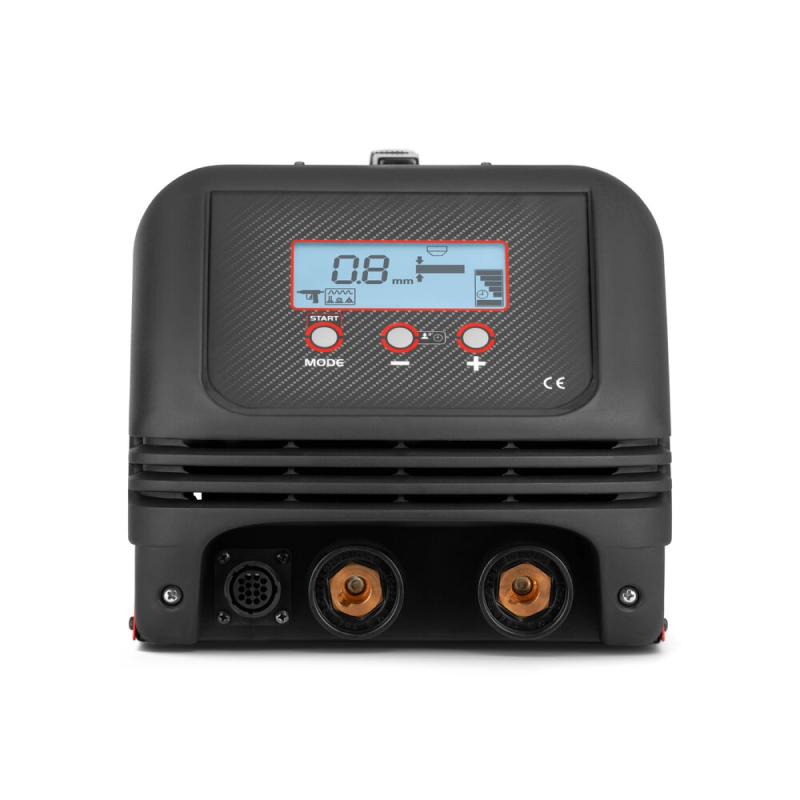

Electronic repair spotter (traction, spot welding) of vehicles. With automatic gun and kit for spot welding pins, washers, rivets and pulling stars, sheet warming and upsetting- The multi-functional LCD digital panel allows automatic adjustment of the parameters based on the choice of tool
- Versatility of use with different work instruments thanks to the ALTAS sockets
- Suitable for spot welding sheet metal with a maximum thickness of 1.5 + 1.5 mm
Tech Spec
| Model | DIGICARSPOT5500-AU/T |
| Double phase mains voltage | 400 V |
| Mains frequency | 50/ 60 Hz |
| Peak spot-welding current | 4200A |
| Max. no load voltage | 6 V |
| Max. absorbed power | 11 Kw |
| Rated power x = 50% | 2 kw |
| Power factor | 0.7 |
| Max. spot welding current | 3000 A |
| Max. weld thick on 2 sheets | 1.5 + 1.5 mm |
| Duty cycle | 3% |
| Protection degree | IP 22 |
| Dimensions | 39 x 26 x 22.5 cm |
| Weight | 26 kg |
