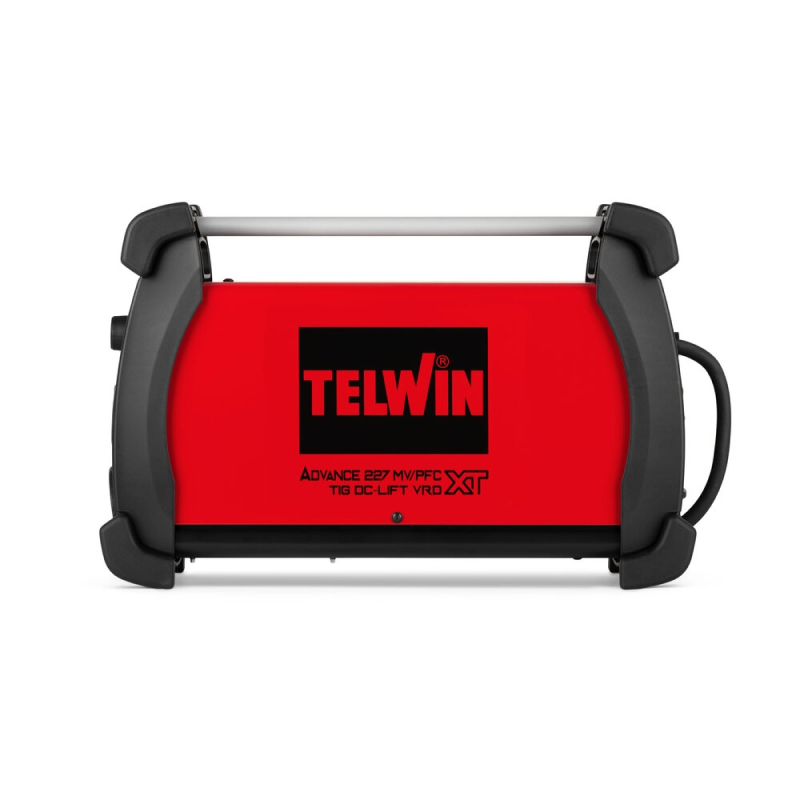

TELWIN 10-200A 230V MMA Welding Machine ADVANCE 227XT, MV/PFC VRD MMA/TIG
SKU: TEL-ADV227XT-MV
Categories: SPOT Welding Machine, Welding machine
Tags: SPOT WELDING MACHINE, WELDING MACHINE
Features
Direct current (DC) MMA and TIG (LIFT strike) electrode inverter welding machine, 200 A with LCD display. Strong structure and resistant to impact.Supplied with accessories for welding and aluminium case.- Multi-voltage: use with any variable power supply within a broad range (100÷240V) and operation with highly unstable and fluctuating voltages
- MV/ PFC device: maximum performance also from residential lines with absorptions under 30% compared to welding machines with equal power.
- Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm
- Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V,+/-15%). High stability of the welding current in power supply voltage variations
- Possible use with extensions up to 250 m. With VRD (Voltage Reduction Device).
- Quick connections (socket) Ø 50 mm. Solid, metal handle. Compact and easy to transport. Contained consumption thanks to inverter technology.
Tech Spec
| Model | ADVANCE227XT |
| Single phase mains voltage | 100 – 120/ 200 – 240V |
| Mains frequency | 50/ 60 Hz |
| Current range | 10-120 (150)/ 10-200A |
| Max current | 120@30%(150@30%) /200@30%A |
| DC Current | 95(125)/ 125(135)A |
| Max. no load voltage | 81V |
| Max. absorbed current | 33(25)/27(19)A |
| Absorbed current at 60% | 24(20)/ 16.5 (11)A |
| Max absorbed power | 3.1 (2.4)/5.2 (3.6)kw |
| Absorbed power at 60% | 2.3 (1.9)/ 3.2(2.1)kw |
| Motorgenerator minimum power | 5/8 Kw |
| Efficiency | 84% |
| Power factor | 0.98 |
| D.usable electrodes in DC | 1.6 – 4 mm |
| Protection degree | IP 23 |
| Dimensions | 37.5 x 50 x 22 cm |
| Weight | 11.64 kg |
