TELWIN 400V LCD Display Digital Car Spotter DIGICARSPOT5500-400V
Features

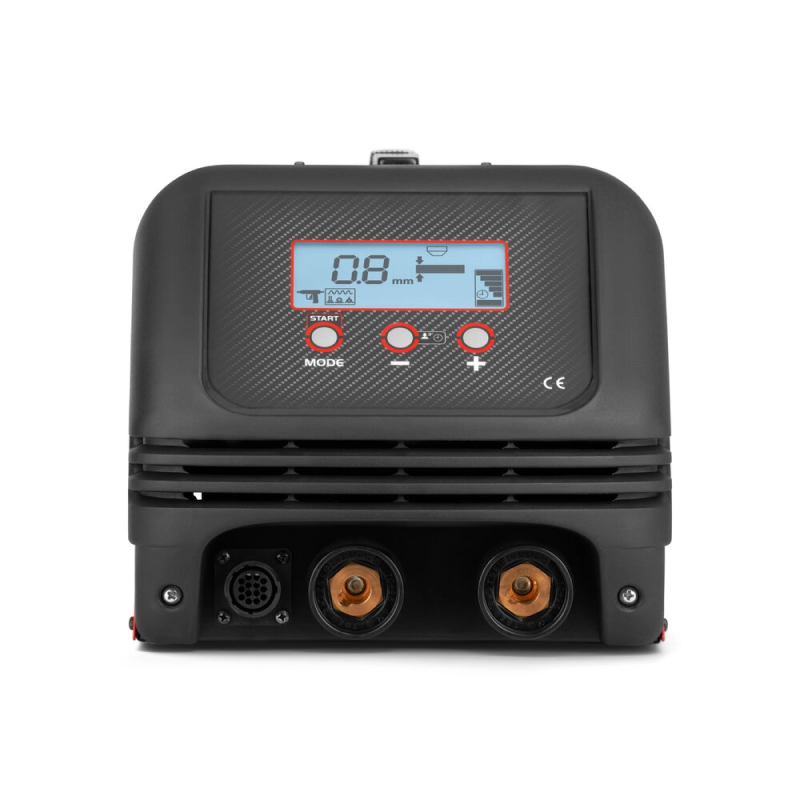

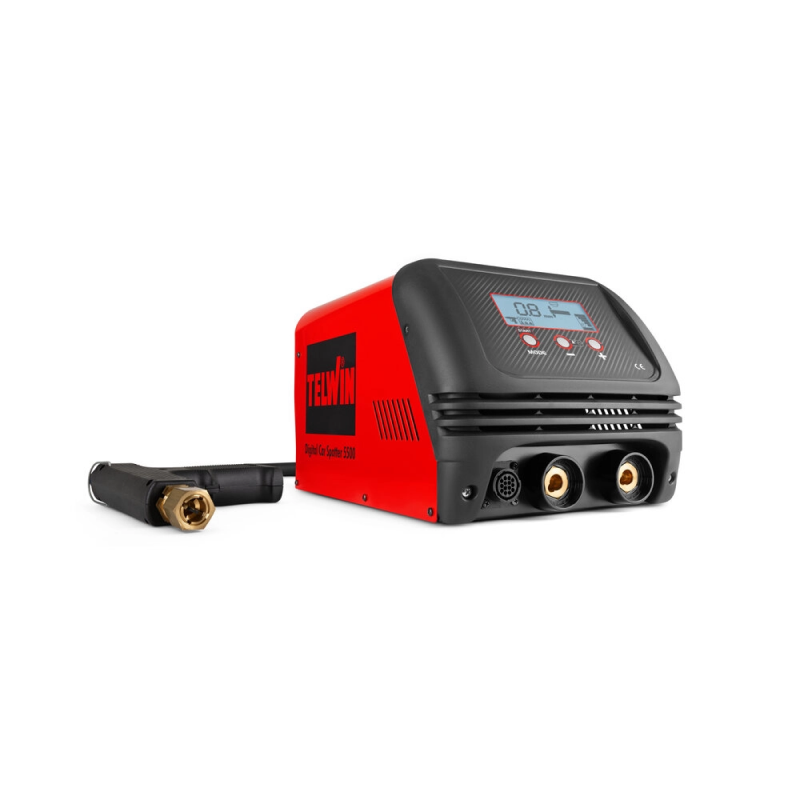

Electronic repair spotter (traction, spot welding) of vehicles. With trigger gun and kit for spot welding pins, washers, rivers and pulling stars, sheet warming and upsetting- The multi-functional LCD digital panel allows automatic adjustment of the parameters based on the choice of tool
- Versatility of sue with different work instruments thanks to the ALTAS sockets
- Suitable for spot welding sheet metal with a maximum thickness of 1.5 + 1.5 mm
Tech Spec
| Model | DIGICARSPOT5500-400V |
| Double phase mains voltage | 400V |
| Mains frequency | 50/ 60 Hz |
| Peak spot welding current | 4200A |
| Max. no load voltage | 6V |
| Max absorbed power | 11 Kw |
| Rated power X=50% | 2Kw |
| Power factor | 0.7 |
| Max spot welding current | 3000 A |
| Max weld thick on 2 sheets | 1.5 +1.5 mm |
| Duty cycle | 3% |
| Protection Degree | IP 22 |
| Dimensions | 39 x 26 x 22.5 cm |
| Weight | 25Kg |
