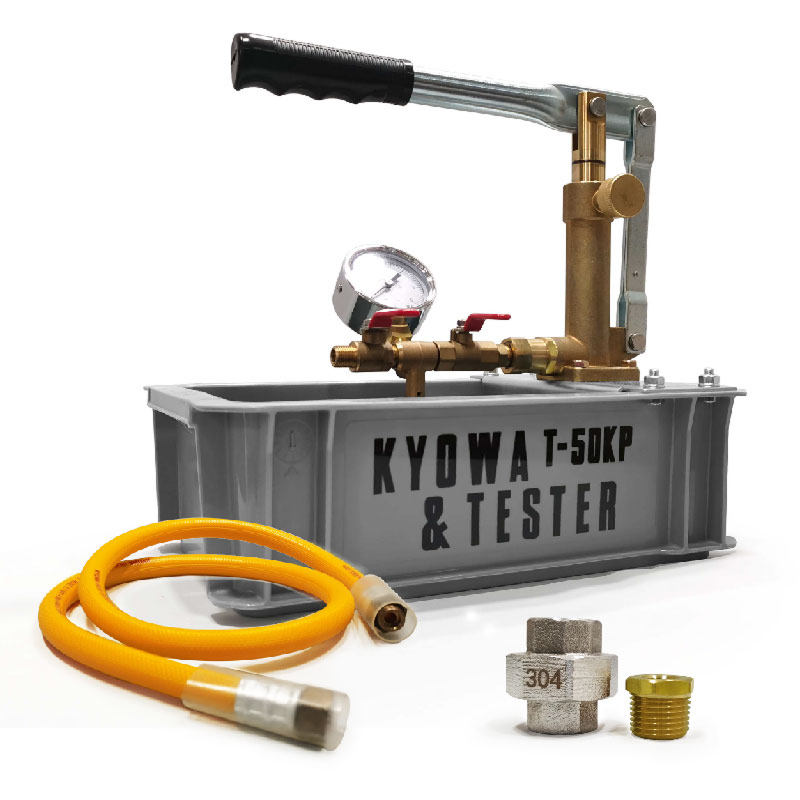

KYOWA Test Pump T-K Series
TEST PUMP 50 KG/CM2 (49.03 BAR) to 100 KG/CM2 (98.06 BAR), 35MM STROKE 13 CC SUCTION RATE/STROKE
Features
1.High-precision stainless steel (SUS 304) ball value is applied as the valve.
2.Valve seat is replaceable with ease.
3. Water tank of rust-free plastic (P.P) construction assures unchanging cleanliness. (Model T-50K and T-100K are of vinyl-coated steel sheet construction.)
4. The plunger packing used is standard product, O-ring No. P-22 which is available in local hardware dealers.
5. All fulcrum pins applied are made of stainless steel.
6. A full range of accessories are provided to permit on-the spot job.
7. Matchless compact and light-weight design in the world.
Tech Spec
T-K Series
NDX Series
| Model | T-50K | T-100K |
| Maximum pressure | 50kg/cm2 | 100kg/cm2 |
| Plunger diameter | 22mm | 22mm |
| Stroke | 35mm | 35mm |
| Rated of water suction per stroke | 13cc | 13cc |
| Capacity of water tank | 4.5L (Plastic tank) | 5.2L (steel tank) |
| Size of discharge port | 1/4 | 1/4 |
| Weight | 3.3kg | 7kg |
| Dimension (L x H x W) | 320 x 300 x 200mm | 370 x 300 x 210mm |
NDX Series
| Model | T-300NDX | T-500NDX | T-1000NDX |
| Maximum pressure | 30MPa | 50MPa | 100MPa |
| Plunger diameter | 12mm | 8mm | 8mm |
| Stroke | 45mm | 30mm | 30mm |
| Suction rate / stroke | 5cc | 1.5cc | 1.5cc |
| Tank volume | 18L | ||
| Discharge nozzle size | 3/8 | ||
| Weight | 8kg | 9.5kg | 9.5kg |
| Dimension (L x H x W) | 610 x 375 x 290mm | 630 x 410 x 270mm | 630 x 410 x 270mm |
