OMCN 1000kg Hydraulic Foldable Floor Crane FC-GP10DE
Features
- Foldable in just a few seconds and so small when stored
- Ground chrome-plated rod for top reliability over time
- Extendable arm in 4 working positions
- Revolving rear wheels to move it easily
- 360 revolving hook
- Safety valve to avoid any possible overload
- Descent control device with a controlled speed
- Two speed hydraulic pump
- Rubber and nylon wheels
Tech Spec

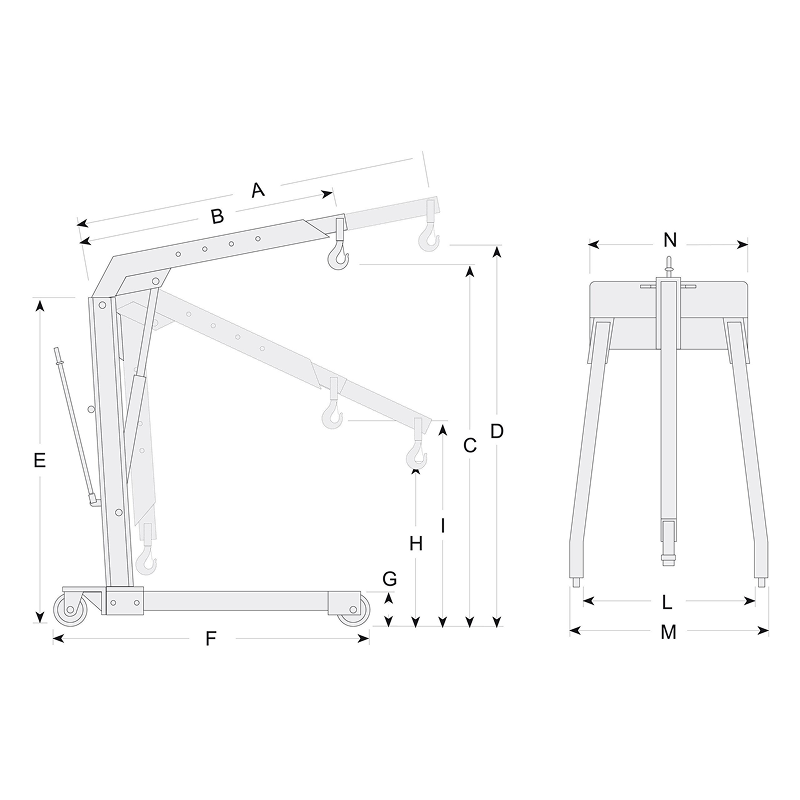

| Model | GP10/DE |
| Capacity (Ton) | 1 |
| I Hole (Ton) | 1 |
| II Hole (Ton) | 0.5 |
| III Hole (Ton) | 0.5 |
| IV Hole (Ton) | 0.3 |
| A (mm) | 1470 |
| B (mm) | 1170 |
| C (mm) | 2180 |
| D (mm) | 2320 |
| E (mm) | 1700 |
| F (mm) | 1740 |
| G (mm) | 180 |
| H (mm) | 550 |
| I (mm) | 725 |
| L (mm) | 840 |
| M (mm) | 980 |
| N (mm) | 450 |
| Weight (Kg) | 122 |
