Streamline Your Workshop: The Power of an Electric Chain Hoist with Trolley
What is an Electric Hoist Trolley?
In many workshops, lifting a heavy load off the ground is only half the battle. The real challenge—and often the biggest bottleneck—is moving heavy loads from Point A to Point B once they are in the air.
If your hoist is stuck on a stationary hook, your team is limited. They have to drag heavy components into the exact lifting zone, or worse, struggle to swing a suspended load into position. This kills your production line efficiency and creates safety risks.
The solution for this case is simple but transformative: upgrading from a static fixed hook to an electric chain hoist with trolley.
How does an Electric Hoist Trolley system works?
Think of a trolley as the “wheels” for your hoist.
While the hoist handles the vertical lifting (Up/Down), the beam trolley handles the horizontal movement (Left/Right). It is a wheeled unit that clamps securely onto the bottom flange of your workshop’s I-beam.

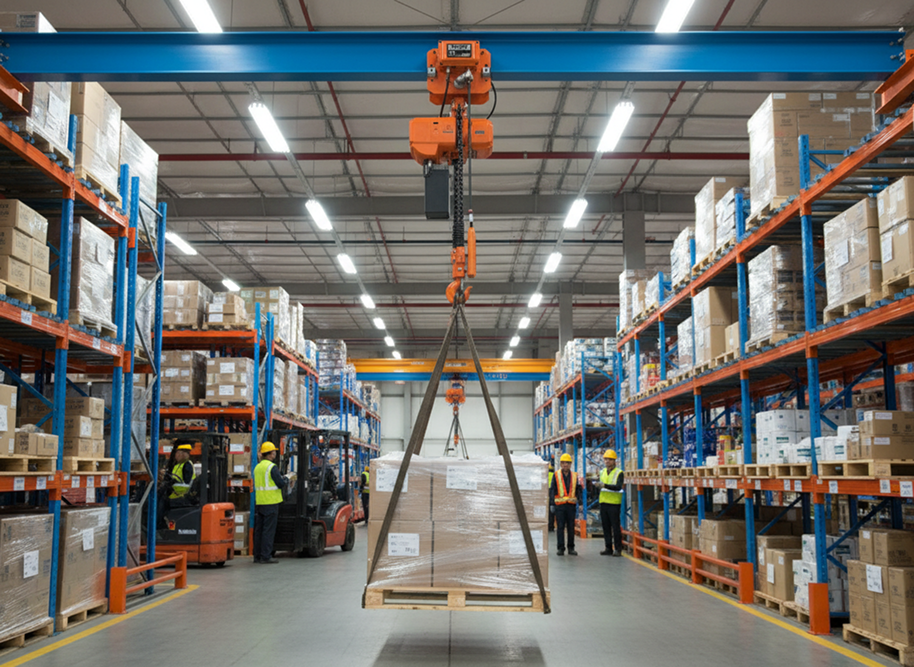

By mounting your hoist to a trolley, you turn a static lifting station into a mobile overhead crane system, giving you total command over your workspace.
Model Available from NICHI TECH Electric Chain Hoist & Electric Trolley ECT Series
All models come with a standard lifting height of 6 meters.
| Model | Capacity | Lifting Speed | Traveling Speed | Motor Power (Lift / Travel) | Compatible I-Beam Width |
ECT5010 | 1 Ton | 6.6 m/min | 21 m/min | 1.5 kW / 0.4 kW | 58 – 153 mm |
ECT5020 | 2 Ton | 6.6 m/min | 21 m/min | 3.0 kW / 0.4 kW | 82 – 178 mm |
ECT5030 | 3 Ton | 5.4 m/min | 21 m/min | 3.0 kW / 0.75 kW | 100 – 178 mm |
ECT5050 | 5 Ton | 2.7 m/min | 11 m/min | 3.0 kW / 0.75 kW | 100 – 178 mm |
3 Key Benefits for Your Production Line
Why should you invest in a trolley system? Here is how it directly impacts your bottom line.
1. Expanded Coverage Area
A stationary hoist can only service the 2 square meters directly underneath it. An electric chain hoist with trolley can service the entire length of your I-beam. You can pick up a part at the unloading bay and travel 20 meters down the line to the assembly station without ever putting it down. You effectively multiply the usable space of your workshop.
2. True One-Man Operation
Moving heavy loads horizontally usually requires a team: one person on the hoist controls, and two people pushing or guiding the suspended load. With a motorized trolley, a single operator can lift, transport, and lower a load safely using one remote control. You free up your other workers to focus on their own tasks, doubling your labor efficiency.
3. Precision Positioning
In sectors like automotive repair or mold manufacturing, “close enough” isn’t good enough. You need to align an engine block with mounts or set a heavy mold into a machine with millimeter accuracy. A trolley system eliminates the dangerous practice of “swinging” or manually pushing a suspended load into place. You can drive the load exactly where it needs to be, protecting both your expensive equipment and your staff.
Featured Solution: The NICHI TECH Electric Chain Hoist & Electric Trolley
At HHM Machinery, we recommend the Nichi Tech ECT series for integrated trolley systems.
Nichi Tech hoists are designed to integrate seamlessly with their trolley mounts, providing a smooth, jolt-free travel experience. Whether you need a simple Geared Trolley (moved by pulling a hand chain) for occasional use, or a fully Motorized Electric Trolley for high-volume production lines, Nichi Tech offers the robustness required for Malaysian industrial environments.
A static workshop is a slow workshop. If you want to maximize your throughput and reduce worker strain, it’s time to get your lifting equipment moving.
Ready to upgrade to an electric chain hoist with trolley system?
Contact HHM Machinery today.
Our experts can calculate the right beam specs and trolley capacity for your facility, ensuring you get a solution that fits your workflow perfectly.
