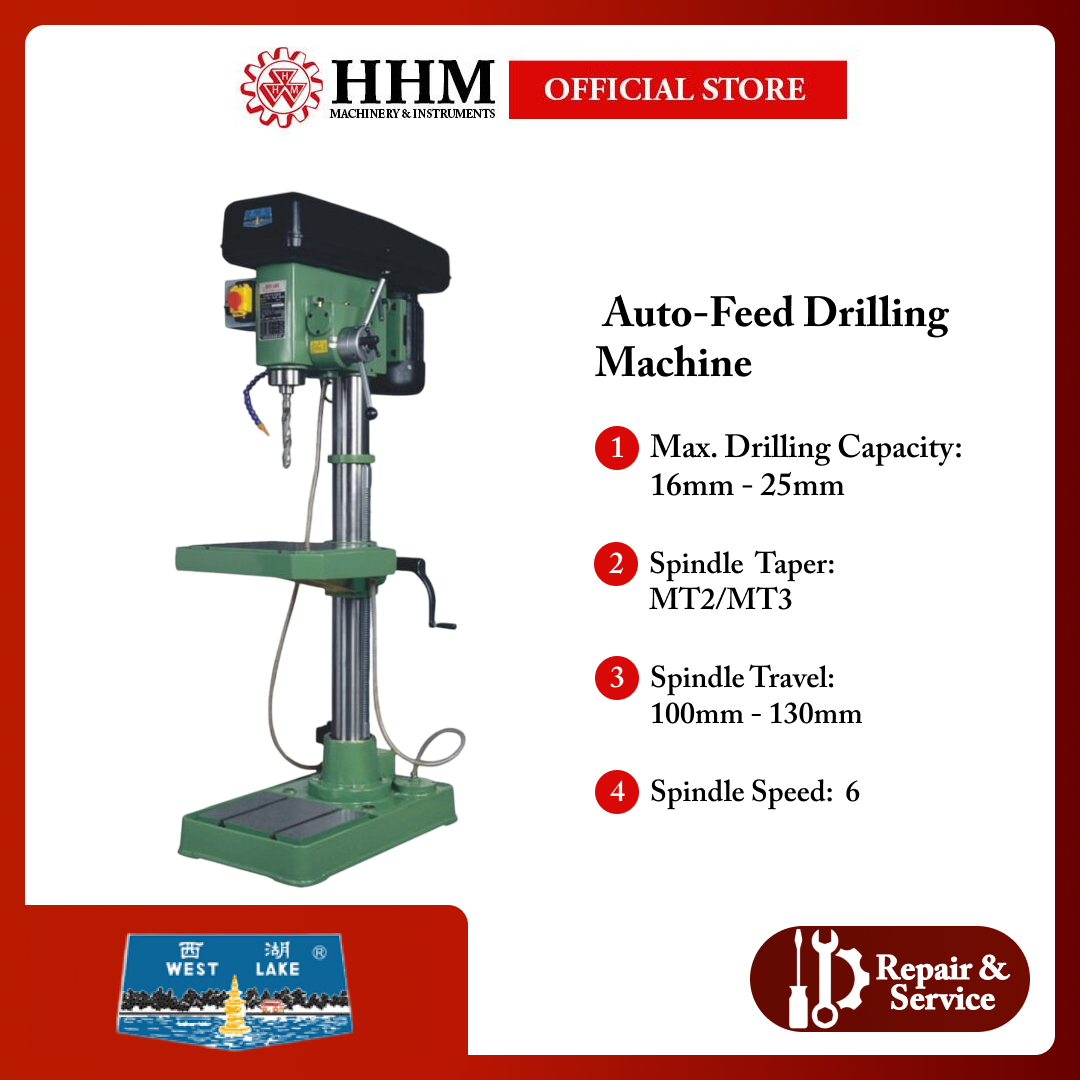

WESTLAKE Auto-Feed Drilling Machine
Categories: Drilling, Milling & Tapping, Auto Feed System Drilling, Bench Drill, Bench Drilling, Milling, Tapping
Tags: AUTO FEED SYSTEM, DRILLING MACHINE, WESTLAKE
Description
Product Description
Main feature:
1.16/25mm autofeed drilling machine .
2.Spindle feeding can be not only automatically but also manually.
3.Auto -feeding can reduce labour intensity.
4.Belt driving,low noise.
5.The feeding belt pulley was equipped with over loading protection mechanism.
6.Auto-feeding can use fixed distance operation.It will go back to the start place automaticall.
7.Widely use in various kinds of artifacitious area.
Tech Spec
Model | Power | Max. Drilling Capacity | Diameter Of Column | Spindle Travel | Distance Spindle Axis To Column Surface | Max. Distance Spindle Nose To Worktable | Max.Distance Spindle To Base | Spinder Taper | Speed | Spindle Speed | Dimension Of Worktable Surface | Dimension Of Base Worktable Surface | Overall Height | GW |
ZJB-16 | 750w x 230v | 16mm | 85mm | 100mm | 180mm | 425mm | 610mm | MT2 | 290-2000 rpm | 6 | 270 x 280mm | 245 x 245mm | 1050mm | 140kg |
JZB-25(A) | 1500w x 415v | 25mm | 102mm | 130mm | 230mm | 750mm | 990mm | MT3 | 230-2160 rpm | 6 | 340 x 360mm | 260 x 260mm | 1560mm | 215kg |
