TTMC Pan & Box Brake
RM11,700.00
Categories: Metal Working, Pan & Box Brake
Tags: PAN & BOX BRAKE, TTMC
Description

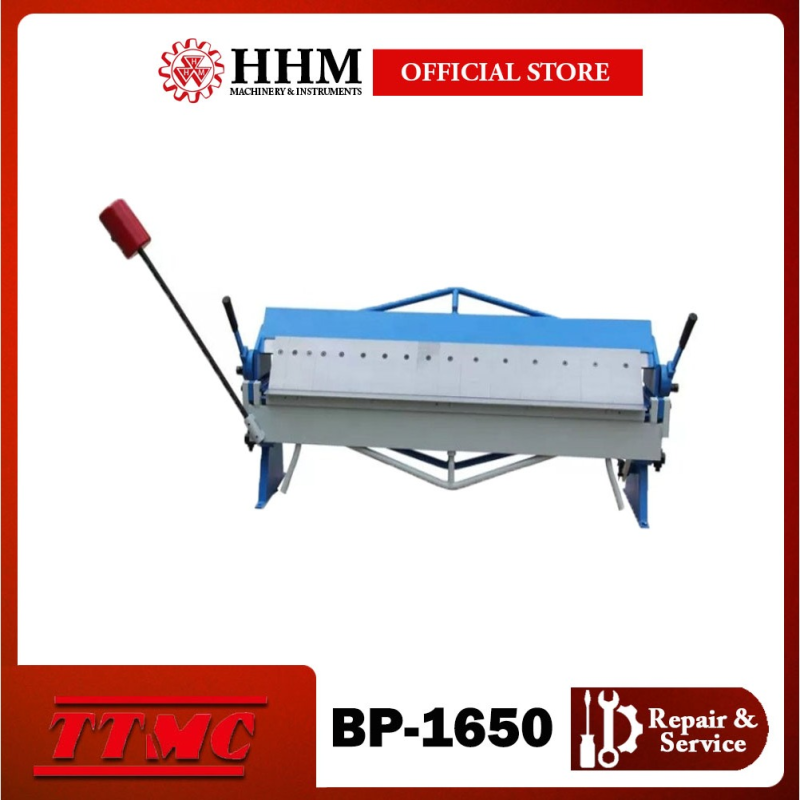

BP-1650 Pan & Box Brake
* With high blades 184mm
* Sectioned fingers are easily removed for box bending and special forming operation
* With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
* Balance weight hammer save your working effort
Features:
1. With high blades 184mm
2. Sectioned fingers are easily removed for box bending and special forming operation
3.With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
4.Balance weight hammer save your working effort
Tech Spec
Model | BP-1650 |
Max. Bending Length | 1270mm |
Max. Thickness | 1.5mm ( 16Ga ) |
Max. Box depth | 100mm |
Max. Lift Of Beam | 32mm |
Beam Adjustment | 16mm |
Finger Nose Angle | 0-135′ |
Packing Size | 168 x 59 x 83cm |
G.W | 255kg |
