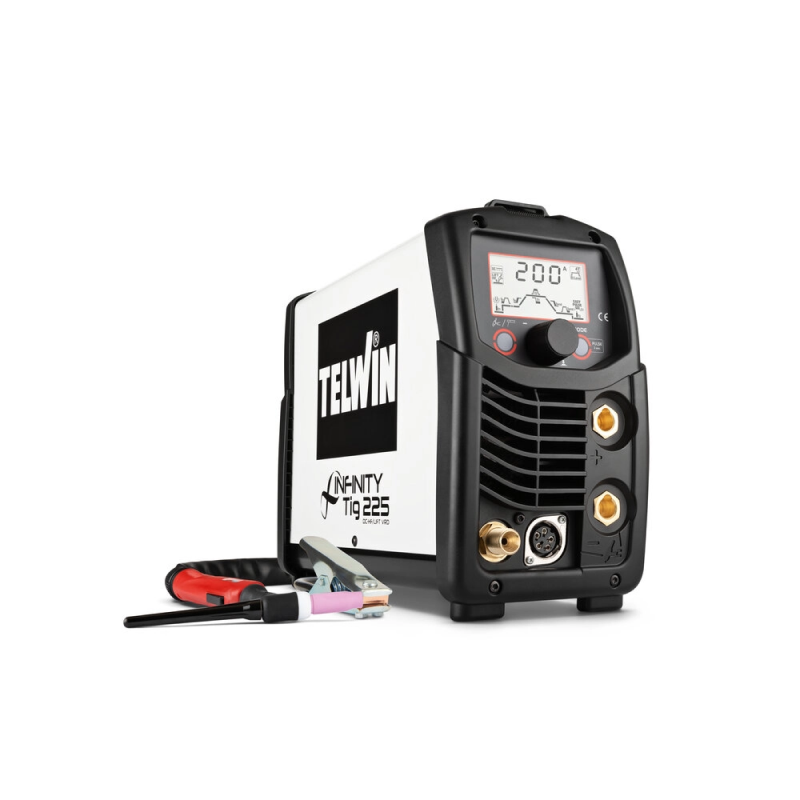

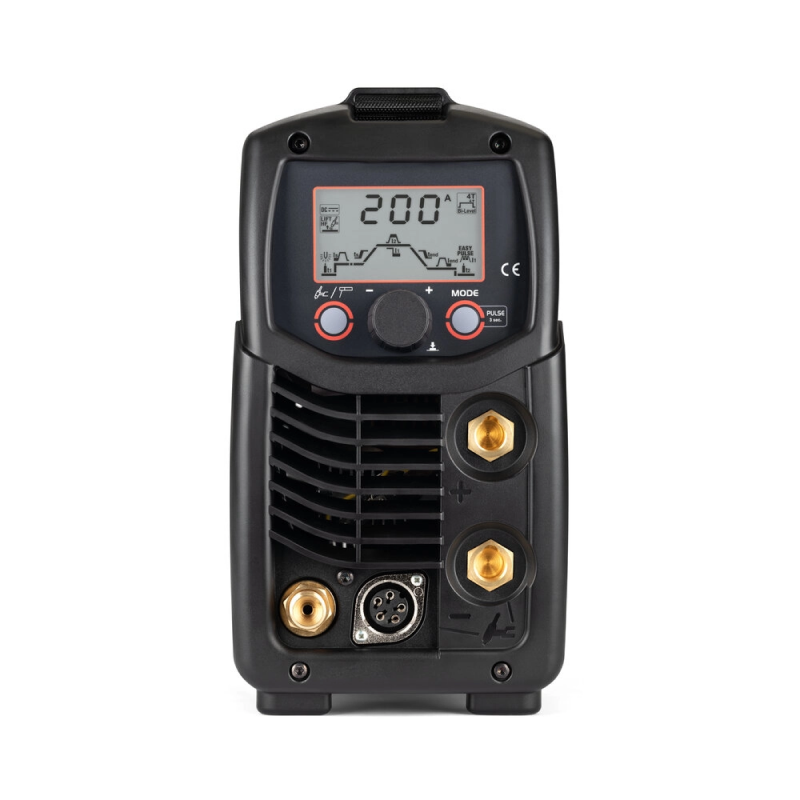

TELWIN230V 1PH, 10-200AMP MMA Inverter Welding Machine INFINITY TIG 225 DC
SKU: TEL-INFINITY-TIG225
Categories: Welding machine, MIG Welding Machine
Tags: MIG MAG WEIDING MACHINE, WELDING MACHINE
Features
TIG (high frequency HF or LIFT strike), TIG PULSE-EASY PULSE and MMA in direct current (DC) inverter welding machine, 200A. Supplied with accessories for TIG welding- Adjustment of multiple parameters of the TIG welding curve. 2/4 times operation.
- Set up for remote control
- MMA welding: rutile and basic electrodes up to 4 mm. VRD device for greater safety.
- Contained consumption thanks to inverter technology.
Tech Spec
| Model | INFINITY TIG225C |
| Single phase mains voltage | 230 V |
| Mains freqeuncy | 50/60 Hz |
| Current range | 10 – 200A |
| Max. current | 200@25%A |
| DC Current | 120A |
| Max. no load voltage | 82V |
| Max.absorbed Current | 30A |
| Absorbed current at 60% | 20A |
| Max. absorbed power | 4.7 Kw |
| Absorbed power at 60% | 3.2 kw |
| Efficiency | 89% |
| Power factor | 0.7 |
| D.usable electrodes in DC | 1.6 – 4 mm |
| Protection degree | IP 23 |
| Dimensions | 39 x 15.5 x 29 cm |
| Weight | 6 kg |
