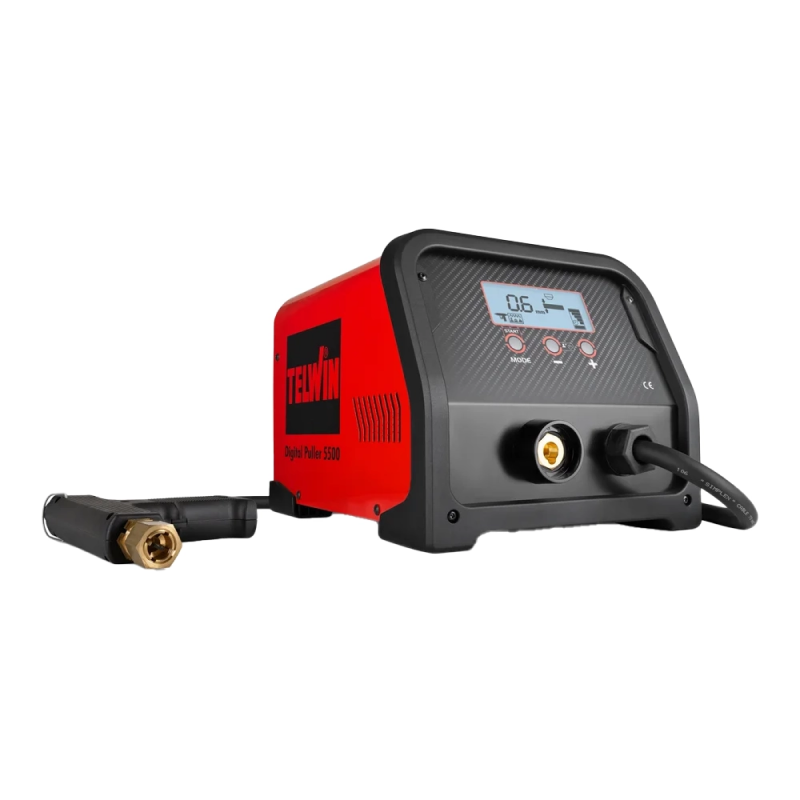

TELWIN 400V LCD Display Digital Car Puller DIGPULLER5500
Overview
Microprocessor controlled, electronic system for repairing of metal sheets, fit for applications in car body shops.

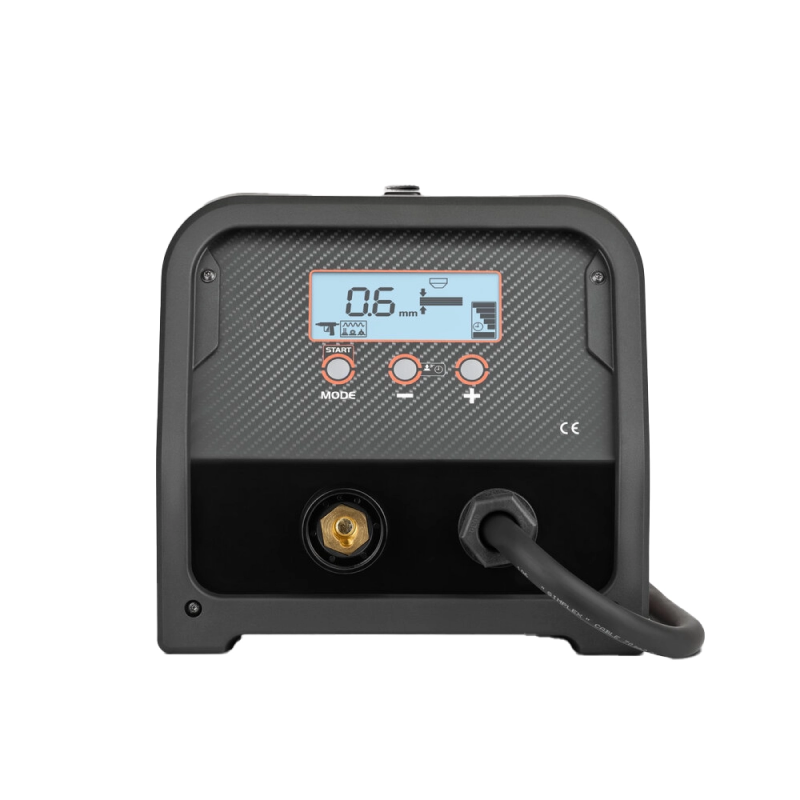

The LCD digital, multifunction control panel allows the automatic regulation of the spot welding parameters according to the chosen tool.
Features
Puller suitable for straightening and repairing steel sheets indicated for bodyshop works. With automatic gun, earth cable with pointing mass, puller, spindle and pulling stars- The multi-functional LCD digital panel allows automatic adjustment of the parameters based on the choice of tool
- Automatic thickness adjustment
Tech Spec
| Model | Digital Puller 5500 (828128) |
|---|---|
| Double phase mains voltage | 400 V |
| Mains frequency | 50/60Hz |
| Peak spot-welding current | 3800 A |
| Max.no load voltage | 5.6V |
| Max.absorbed power | 10.5 kW |
| Rated power X=50% | 1.8 kW |
| Power factor | 0.8 |
| Max.spot-welding current | 2500A |
| Duty cycle | 1.5% |
| Protection degree | IP 22 |
| Dimensions | 39 x 26 x 22.5 cm |
| Weight | 2.1 kg |
