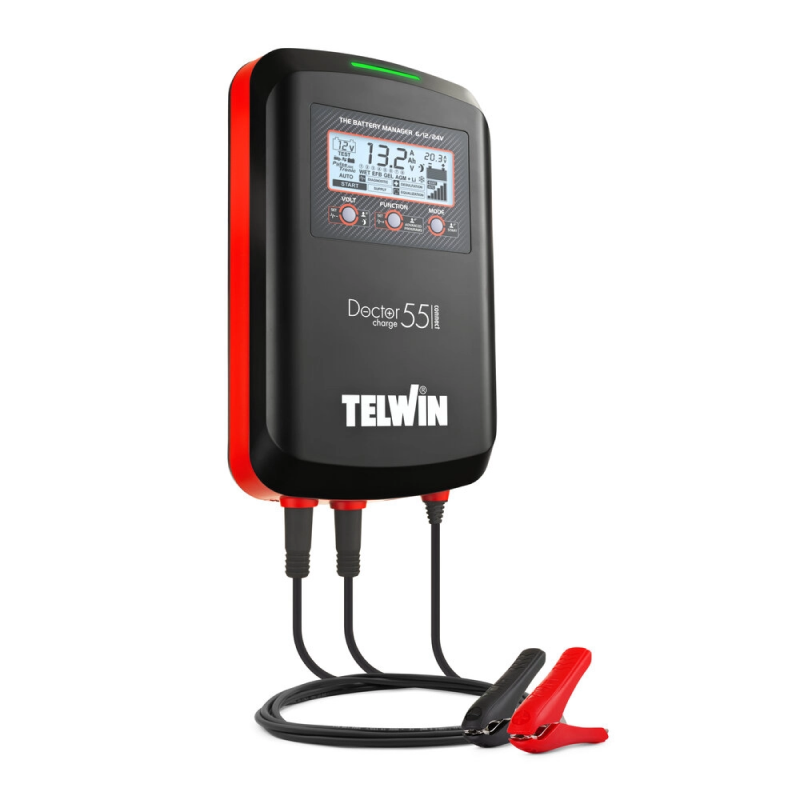

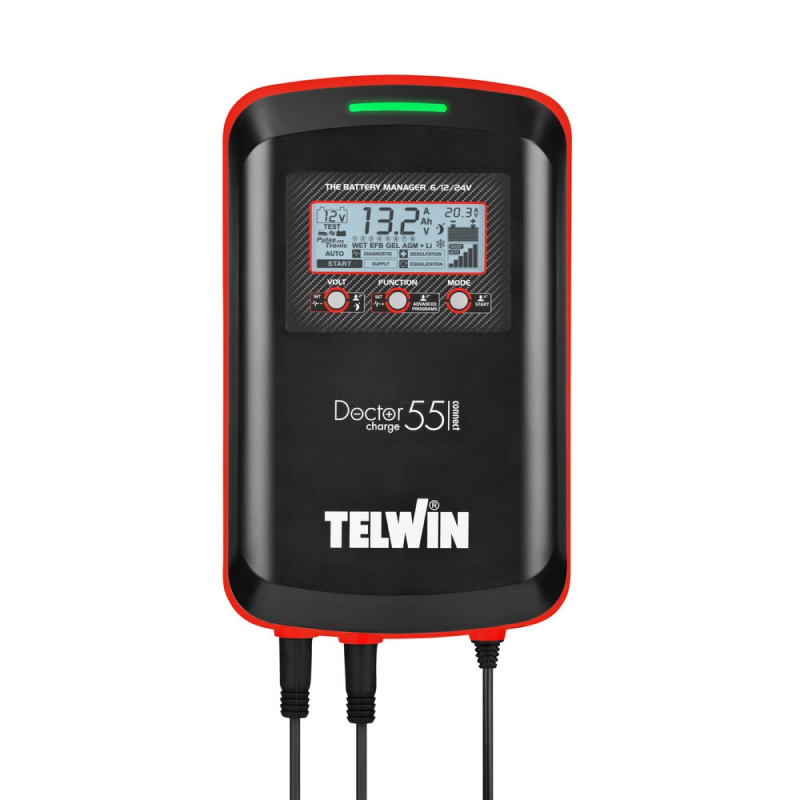

TELWIN 230V Multi-functional Electronic Battery Charger DOCTOR CHARGE 55 CONNECT, 6V/12V/24V
Features
Professional, multi-functional electronic battery charger (battery manager) for WET, GEL, AGM, MF, PbCa, EFB, Li 6V/12V/24V batteries. Additional functionalities via dedicated App. With LCD screen.- The dedicated App (Battery Connect) allows you to share, save and archive the results of numerous battery tests (battery voltage performance, cranking efficiency, vehicle alternator, charge status and condition of the battery) in a simple and safe manner. The App allows you to also check the status of the battery and monitor its progress over time in a prompt and precise manner
- Automatic charging and trickle charging in Pulse Tronic based on the technology of the selected battery. Automatic recognition of battery type (AUTO mode).
- Stable power supply unit for diagnostic activities (BSU), during battery changes (SUPPLY) and to keep vehicle batteries in good condition displayed in showrooms: RECOVERY function, to recover sulphated or very flat batteries and EQUALIZATION function, to recover optimal functionality with periodic regeneration
- Advanced functions: BOOST for rapid charging, COLD for charging and trickle charging of batteries at low temperatures; TEST alternator. Cranking aid
- Cable elongation compensation function, integrated PFC (Power Factor Correction) for reduced absorption and greater stability of the charging current
- Cables with clamps and cable for battery testing.
Tech Spec
| Model | DOCTOR CHARGER 55 CONNECT |
| Single phase mains voltage | 230V |
| Mains frequency | 50 /60 Hz |
| Charging absorbed power | 610 W |
| Charging voltage | 6/ 12/ 24V |
| Effective Charging current | 45/ 45/ 23A |
| Rated charge Curr.EN60335-2-29 | 40/40/20A |
| Start current 1V/C EN60335-2-29 | 40 (BOOST)A |
| Start current 1V/C EN60335-2-29 | 50A |
| Min rated reference capacity | 10 Ah |
| Max. rated reference capacity | 600Ah |
| Protection degree | IP 33 |
| Dimensions | 9.2 x 20 x 33 cm |
| Weight | 4 kg |
