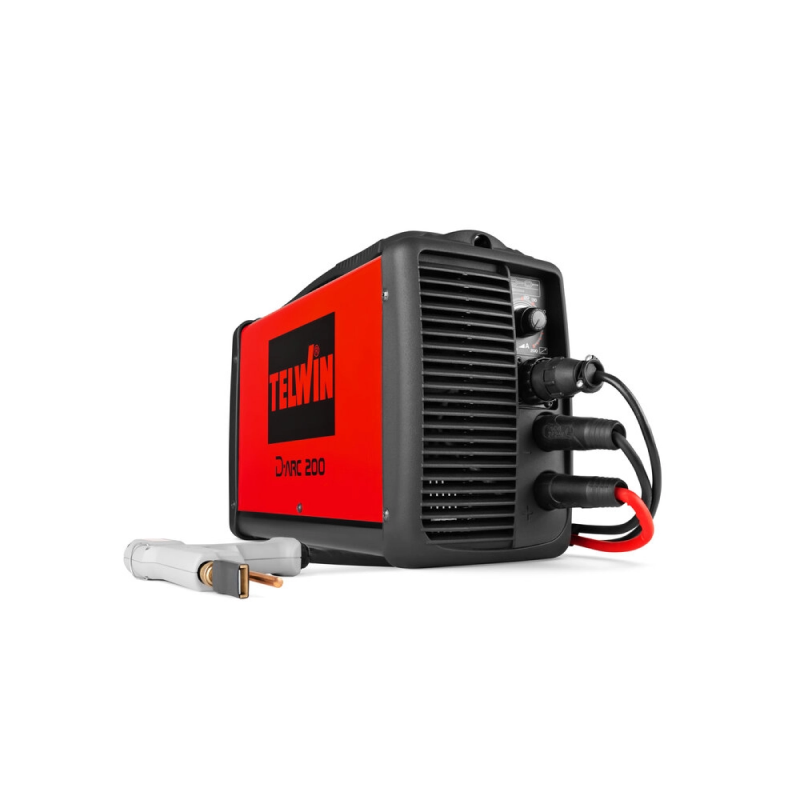

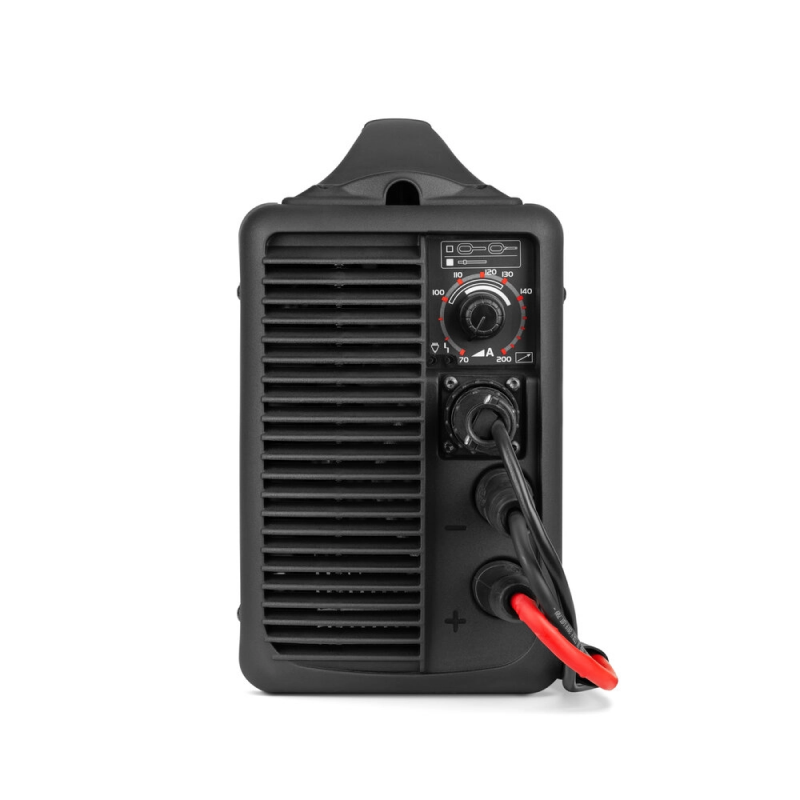

TELWIN 200A Aluminiun Spot Welding Machine D-ARC 200, 230V 1PH, 6.3KW
Features
Electronic system for welding slotted and pins to straighten aluminium sheets in the bodyshop. With gun and slotted washers- Easy to use thanks to the shorts arc technology for fast and precise welding without gas
- Adjustment of welding current
- Light and ergonomic welding gun with built-in earth return
- Welding of close rings (optional: pin) for optimal pull
- Light and compact
Tech Spec
| Model | D-ARC 200 |
| Single phase mains voltage | 230 v |
| Mains frequency | 50/ 60 Hz |
| Max. spot welding current | 200A |
| Max. no load voltage | 80V |
| Max absorbed power | 6.3 kw |
| Efficiency | 92 % |
| Power factor | 0.7 |
| Duty Cycle | 2% |
| Protection degree | IP 23 |
| Dimensions | 38.5 x 15 x 26.5 cm |
| Weight | 7.4kg |
