SIEG SC4-510 Mini Lathe Machine
RM17,400.00
Compact and powerful SIEG SC4-510 Mini Lathe with hi-torque brushless motor, metal gears, and cam-lock tailstock. Supports metric and imperial threading with both cross and longitudinal power feed—ideal for precision metalworking.
Description
The SIEG SC4-510 Mini Lathe Machine is a powerful, high-precision lathe designed for both professional metalworking and serious DIY users. Equipped with a hi-torque brushless motor, it delivers smooth and consistent performance with low maintenance. The metal gear system ensures durability and longer service life, while the cam-lock tailstock offers quick and secure positioning.
This model supports metric and imperial threading, making it versatile for a wide range of projects. It also features cross and longitudinal power feed, providing greater control and accuracy during operation.

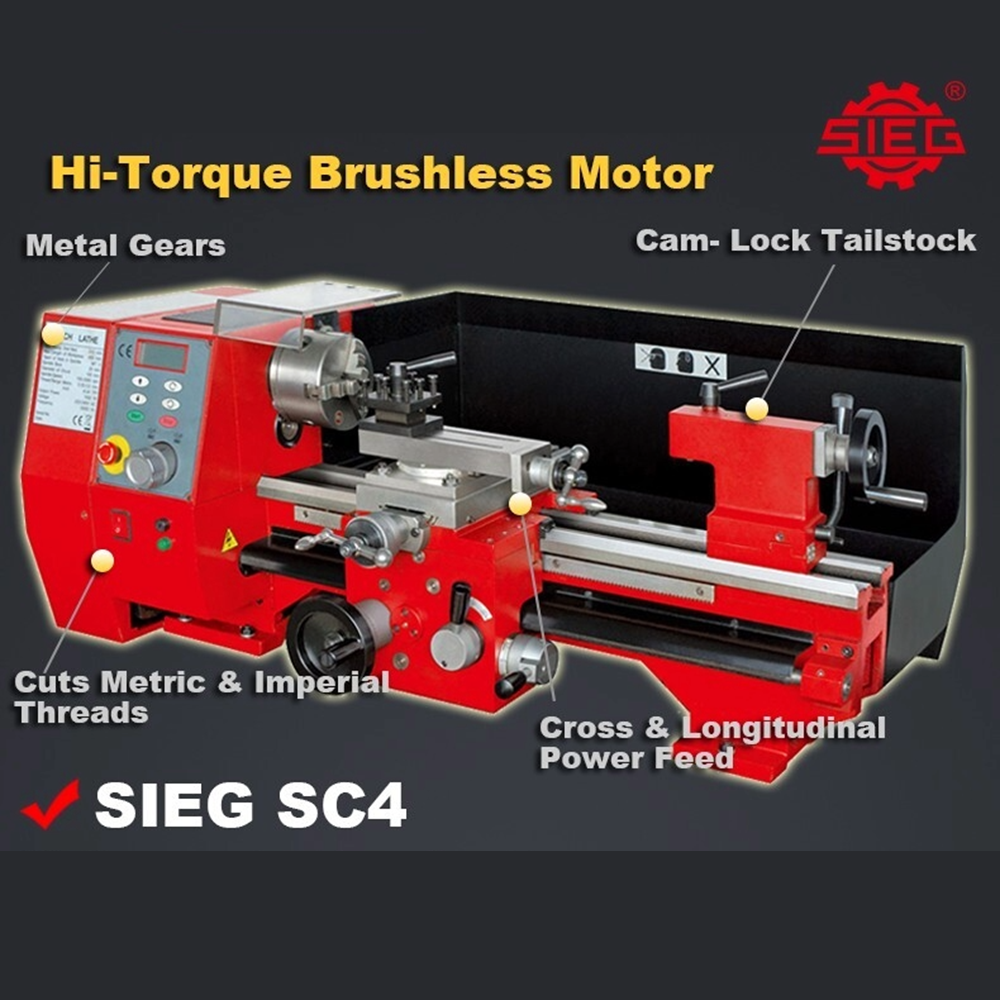

Key Features:
– Hi-torque brushless motor for stable performance
– Durable metal gears for long-term use
– Cam-lock tailstock for quick setup
– Cuts both metric & imperial threads
– Cross & longitudinal power feed
– Compact and robust design suitable for workshop or home use
Ideal for machining small parts, model engineering, and educational workshops.
Tech Spec
| Model | SC4-510 |
| Swing Over Bed | 210 MM |
| Distance Between Centers | 510 MM |
| Hole Through Spindle | 20 MM |
| Spindle Taper | MT 3 |
| Tailstock Taper | MT 2 |
| Cross Slide Travel | 100 MM |
| Compound Travel | 70 MM |
| Range Of Threads Metric | 0.25-3 MM ( 10 Thread Pitches ) |
| Range Of Threads Imperial | 8-24 TPI ( 10 Thread Pitches ) |
| Power | 230 V x 1000 W |
| Spindle Speed ( Variable Speed ) | 100-2000 +-10% RPM |
| Dimension ( L x W x H ) | 910 x 630 x 400 MM |
| Weight | 105/135 KG |
