METABO Table Saw TKHS 315 C – 2,0 WNB
- METABO TABLE SAW
- BLADE: 315MM X 30MM
- TABLE SIZE: 800X550MM
- M.CUTTING HT: 85MM, 230V, 1 PH

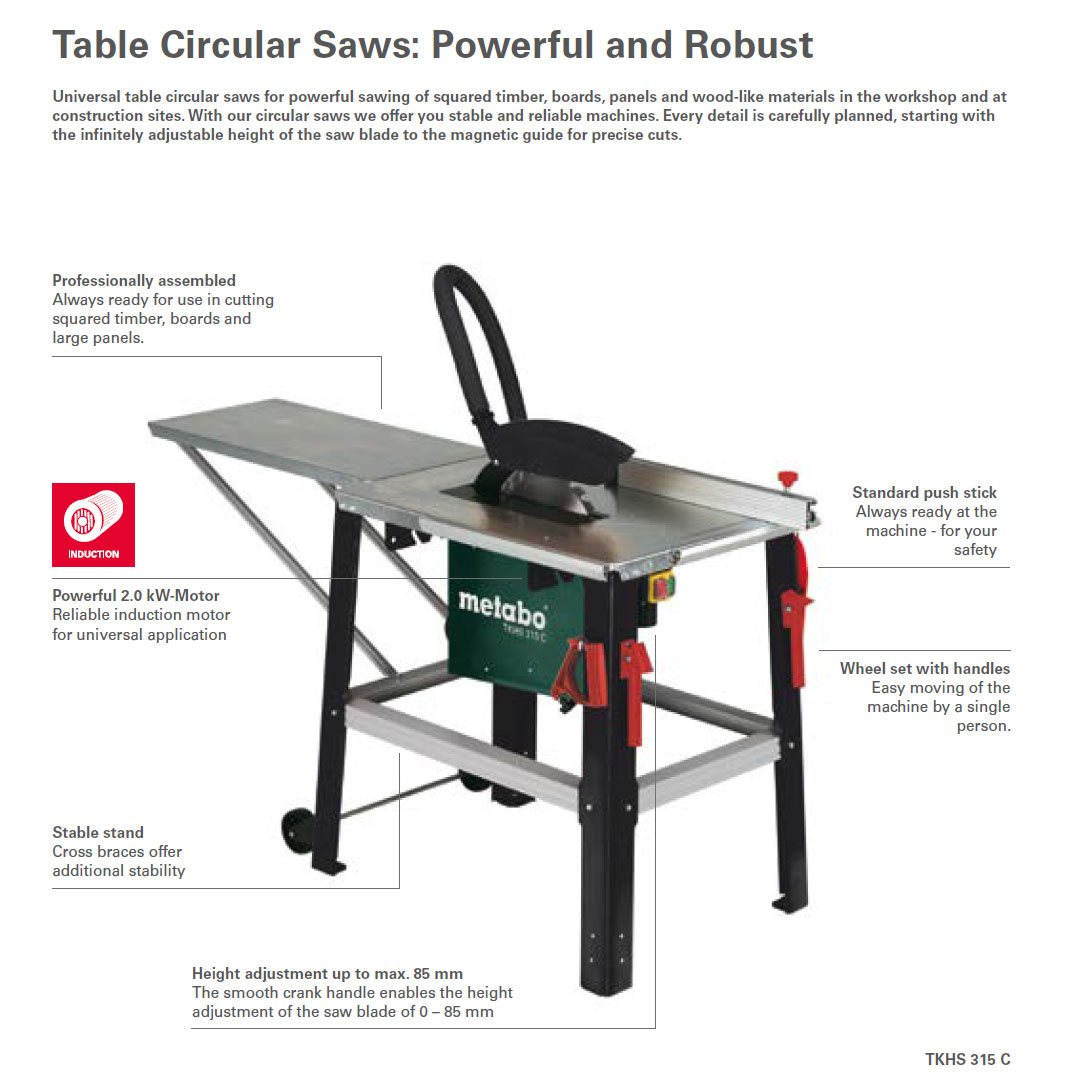

Features
- Restart protection: prevents unintentional start-up after power supply interruption
- Universal table saw with basic equipment
- Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites
- Quiet induction motor with motor brake and overload protection – maintenance-free and robust.

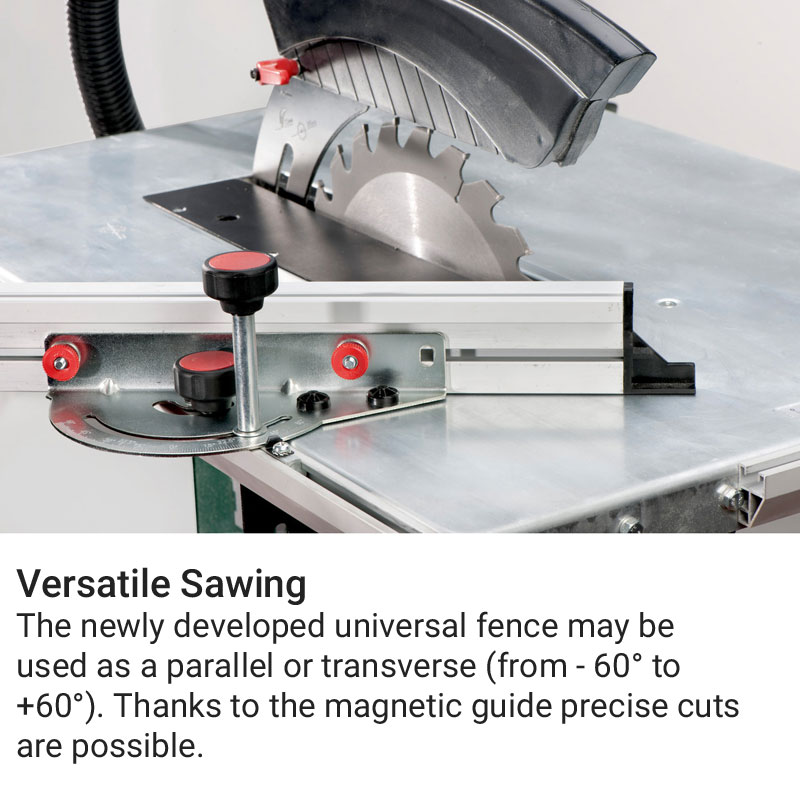

- Universal guide with magnetic guide for precise straight cuts and mitre cuts
- Freely height-adjustable saw blade
- Comfortable setting of the saw blade inclination from the front
- Sturdy, powder-coated sheet steel design and galvanised table-top
- Foldable table length extension
- Frame and motor pre-mounted
Tech Spec
| Model | TKHS-315C 2.0WNB (103152000) |
| Dimension | 1650 x 650 x 1000 mm | 5.5 x 2.2 x 3.3 ft |
| Max. support surface | 800 x 550 mm | 31 1/2 x 21 5/18″ mm |
| Working height | 850 mm | 33 1/2″ |
| Cutting height | 0-85 mm | 0-3 5/16″ |

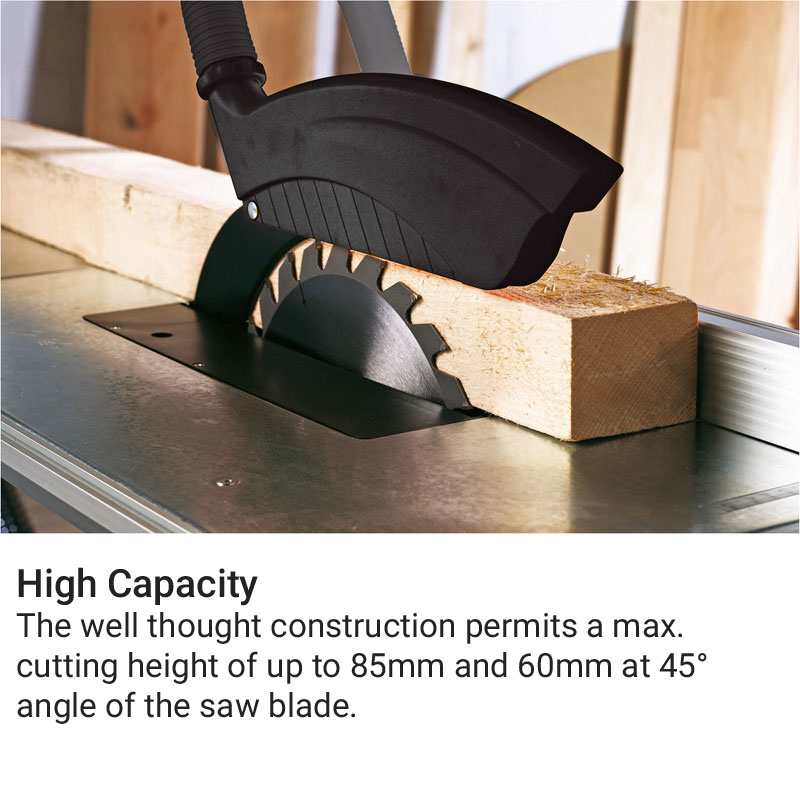

| Maximum cutting height 90/ 45 | 85/60 mm | 3 5/16 / 2 3/8″ |
| Maximum cutting width at rarallel guide / rip fence | 220 mm | 8 5/8″ |
| No-load speed | 2980 rpm |
| Cutting speed | 50 m/s | 164 ft/s |
| Saw blade | 315 x 30 mm | 12 3/8 x 1.181″ |
| Saw blade swivel range | 0-45 |
| Rated input power | 2000 W |
| Output power | 1450 W |
| Weight | 62 kg | 137 lbs |
| Noise emission | |
| Sound pressure level | 98 dB(A) |
| Sound power level(LwA) | 112 dB(A) |
| Uncertainty of measurement K | 4 dB(A) |
Scope of Delivery
Carbide saw blade with alternately bevel-ground tips (24 teeth)- Table extension (550 x 800 mm)
- Chip and Dust Extraction Unit
- Push stick
- Wheel set incl. handles
- Universal guide
