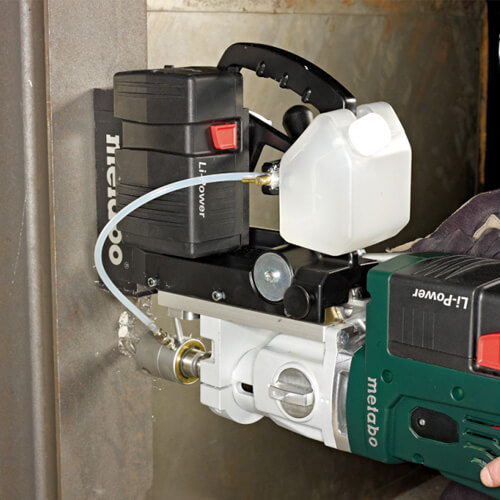

METABO Magnetic Drill MAG 28 LTX 32
- Battery pack voltage : 25.2 V
- Capacity of battery pack : 3 Ah
- Type of battery pack : Li-ion
Features
- Large stroke, therefore suitable for use of core drills, spiral drills and countersinks
- Magnetic base with high holding power permits working on vertical surfaces and overhead
- Highest safety at work thanks to permanent magnet, no accidental deactivation of the magnet is possible
- V Block magnetic base, particularly suited for processing pipes from Ø 90 mm
- Adjustable magnetic holding force for easy positioning on vertical surfaces
- Durable two-speed gearbox with oil bath lubrication for ideal speeds
- Overload protection: protects the motor from overheating
- Integrated coolant container for easy to dose internal cooling of the core drill
- Spare battery pack always handy thanks to storage on drill stand
Tech Spec
| Model | MAG 28 LTX 32(600334500) |
| Type of battery pack | LI-ion |
| Battery voltage | 25.2 V |
| Capacity of battery pack | 3 Ah |
| Max drilling capacity | 32 mm(core drill)| 13 mm (spiral drill) |
| Maximum drilling depth | 50 mm |
| No-load speed | 380/ 680/min |
| Maximum stroke | 160 mm |
| Max magnetic holding force | 8500 N |
| Dimensions of the magnet base | 70 x 190 mm |
| Bit retainer | Morse taper MK2/ Weldon shaft 19 mm |
| Carriage lowest position | 455 m |
| Carriage top-most position | 615 mm |
| Weight (including battery pack) | 14.5 kg |
Scope of Delivery
- Industrial holder for Weldon shank 19 mm
- Geared chuck 13 mm with adapter MK2
- Chuck key
- MK 2 drif t key
- Safety strap
- Allen key
- Universal cutting paste
- 2 Li-Power battery packs (25.2 V/3.0 Ah)
- Quick Charger ASS 15 Plus “AIR COOLED”
- Transport case
- HSS Core Drill “rapid cut” Ø 14 mm
- HSS Core Drill “rapid cut” Ø 18 mm
- HSS Core Drill “rapid cut” Ø 22 mm
- Ejector pin 77 mm
