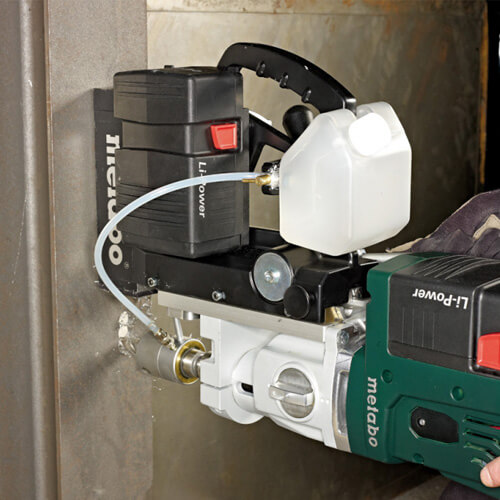

METABO Magnetic Core Drilling Machine MAG 32
MAGNETIC CORE DRILLING MACHINE
Rated input power : 1000W
Output power : 520 W?
Max. drill with core drill : 32 mm | 1 1/4″
Features
- Large stroke, therefore suitable for use of core drills, spiral drills and countersinks
- Magnetic base with high holding power permits working on vertical surfaces and overhead
- Robust Metabo marathon motor with internal wiring for long service life
- Integrated coolant container for easy to dose internal cooling of the core drill
- Bright LED light for easy alignment in poor light conditions
- Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
- Protective circuit starts motor only if the magnet is activated
- Restart protection: prevents unintentional start-up after power supply interruption
- Lockable slide for comfortable tool change
- Handle for easy carrying and lifting
- Resistant mains cable (5 m) with rubber shroud
Scope of Delivery
- Industrial holder for Weldon shank 19 mm
- Geared chuck 13 mm with adapter MK2
- Chuck key
- MK 2 drif t key
- Safety strap
- Allen key
- Universal cutting paste
- 2 Li-Power battery packs (25.2 V/3.0 Ah)
- Quick Charger ASS 15 Plus “AIR COOLED”
- Transport case
- HSS Core Drill “rapid cut” Ø 14 mm
- HSS Core Drill “rapid cut” Ø 18 mm
- HSS Core Drill “rapid cut” Ø 22 mm
- Ejector pin 77 mm
Tech Spec
| Model | MAG 32(600635500) |
| Rated input power | 1000W |
| Output power | 520 W |
| Max. drill with core drill | 32 mm | 1 1/4″ |
| Max. drill with spiral drill | 13 mm | 1/2″ |
| Maximum drilling depth | 50 mm| 2″ |
| No-load speed | 700 rpm |
| Revolutions at rated load | 450 rpm |
| Bit retainer | Weldon shaft 19 mm (3/4″) |
| Weight | 11.9kg | 26.2 lbs |
| Cable length | 5 m/ 16 ft |
| Torque | 50 Nm/ 443 in-lbs |
| Max.depth of feed | 160 mm/ 6 5/16″ |
| Max. magnetic holding force | 12250 N |
| Dimensions of the magnet base | 90 x 189mm | 3 9/16 x 7 1/2″ |
| Height carriage lowest position | 343 mm | 13 1/2″ |
| Height carriage topmost position | 490 mm | 19 9/32″ |
| Vibration | |
| Drilling in metal | 2.5 m/s |
| Uncertainty of measurement K | 1.5 m/s |
| Noise emission | |
| Sound pressure level | 85 dB(A) |
| Sound power level(LwA) | 98 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
