METABO Impact Drill SBEV 1300-2
Features
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load

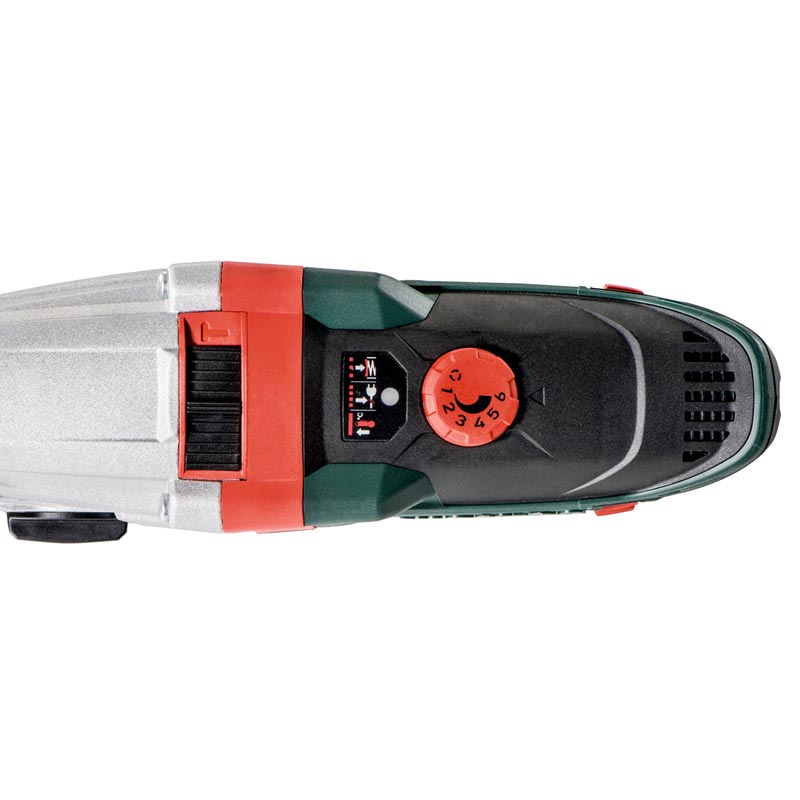

- Thumbwheel for Speed Preselection
- Selectable “impuls” mode for removal of stubborn screws and for spot-drilling on smooth surfaces
- Robust die cast aluminium gear housing for optimum heat dissipation and long service life
- Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
- Metabo Marathon-motor with dust protection for long service life
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
- Forward and reverse rotation

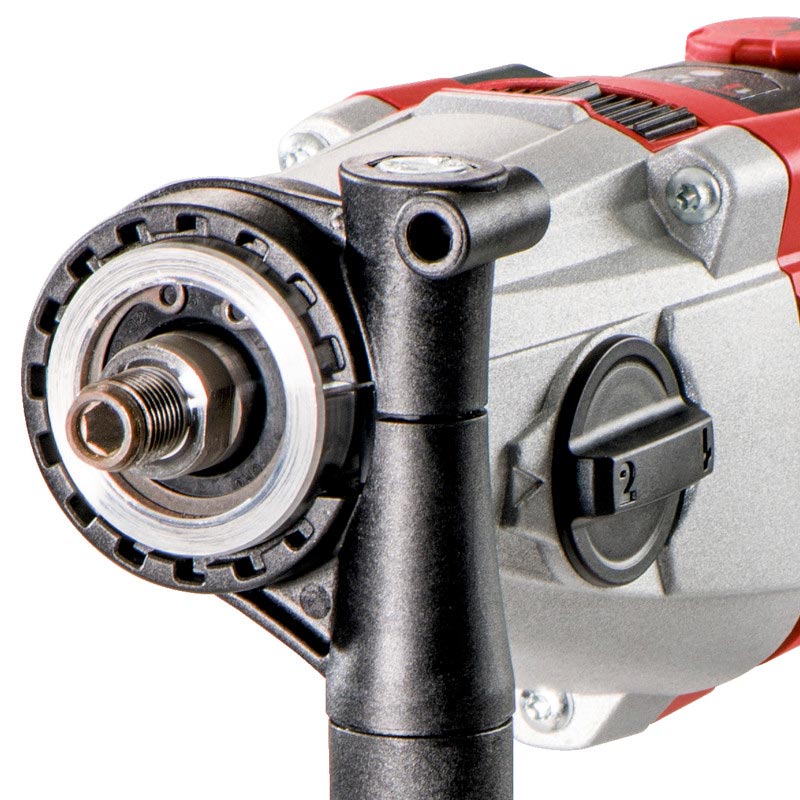

- Spindle with hexagonal recess for screwdriver bits for working without chuck
- Overload protection: protects the motor from overheating
- Restart protection: prevents unintentional start-up after power supply interruption
- Cable-protecting ball joint for optimal freedom of motion when working
- Wear Indication for Carbon Brush
Tech Spec
| Model | SBEV 1300-2 (600785500) |
| Rated input power | 1300 W |
| Output power | 730 W |
| Maximum torque | 44 /16Nm | 390 / 142 in-lbs |
| Drill masonry | 24 mm / 15/16″ |
| Drill concrete | 22 mm | 7/8″ |
| Drill steel | 16/ 10 mm| 5/8 / 3/8″ |
| Drill soft wood | 40/ 25mm | 1 9/16 / 1″ |
| No-load speed | 0-1100 / 0-3100 rpm |
| Maximum impact rate | 58900 bpm |
| Gears | 2 |
| Chuck capacity | 1 – 13 mm | 1 /32 – 1/2″ |
| Collar diameter | 43 mm / 1 11/16″ |
| Drill spindle with hexagonal recess | 6.35 mm | 1/4″ |
| Drill spindle thread | 1/2 ” – 20UNF |
| Chuck clamping type | Keyless chuck |
| Weight(without power cable) | 2.8 kg / 6.2 lbs |
| Cable length | 4 m/ 13 ft |
| Vibration | |
| Drilling in metal | 4.2 m/s |
| Uncertainty of measurement k | 1.5 m/s |
| Impact drilling concrete | 17 m/s |
| Uncertainty of measurement K | 1.5 m/s |
| Noise emission | |
| Sound pressure level | 103 dB(A) |
| Sound power level(LwA) | 114 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
