METABO Cordless Edge Timmer KFM 18 LTX 3 RF
Features
- The most powerful cordless metal bevelling tool for 45° chamfers up to 4 mm and radii of 2 and 3 mm
- Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
- One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
- Slim milling head for working on tubes, on bores from Ø 13 mm, and on exterior contours
- Parallel guide / rip fence for a uniform finish when processing straight edges
- Battery pack can be swivelled for better access in hard to reach places
- Overload protection: protects the motor from overheating
- Electronic soft start for smooth start-up
- Restart protection: prevents unintentional start-up after power supply interruption
- Detachable dust protection filter protects motor from coarse particles
- Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
- LiHD battery pack technology: 67 % more performance, 87 % longer run time and 100 % longer service life.
Tech Spec
| Model | KFM 18 LTX 3 RF(601754840) |
| Battery pack voltage | 18 V |
| No-load speed | 7000 rpm |
| Type of edges | Chamfer and radius |
| Max. chamfer width 45 | 6 mm | 1/4″ |
| Max. chamfer height at 45 | 4 mm | 5/32″ |
| Possible radii | R2 | R3 |
| Grading of cutting depth setting | 0.1 mm | 0.00394″ |
| Curves smallest internal | 13 mm |
| Weight(including battery pack) | 3.1 kg | 6.8 lbs |
| Noise emission | |
| Sound pressure level | 84 dB(A) |
| Sound power level(LwA) | 95 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
Scope of Delivery
- 2 Carbide indexable inserts 45° chamfer
- Guide Stop
- Screwdriver Torx 15
- Bow-type handle
- Dust protection filter
- MetaLoc case
- without battery pack, without charger
- 2 Carbide indexable inserts radius R2
- 2 Carbide indexable inserts radius R3
Optional Accessories

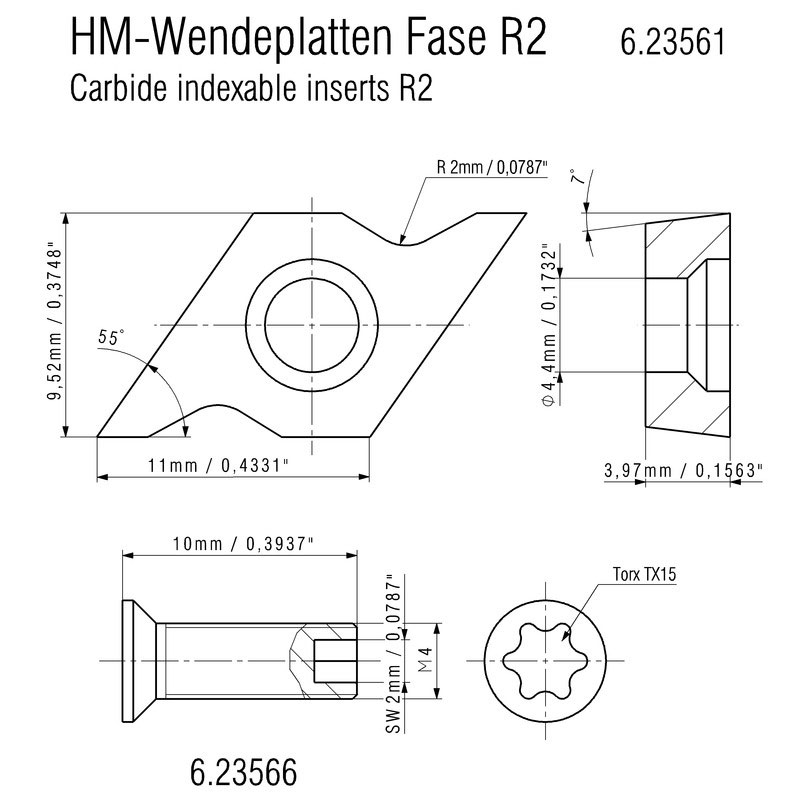

- 10 Carbide indexable inserts R2 (623561000)

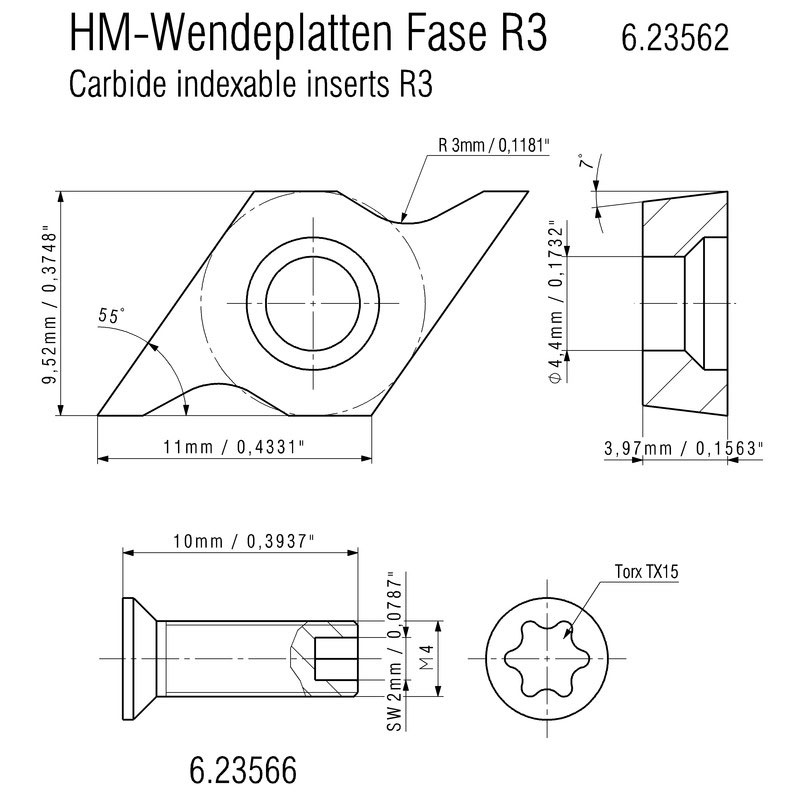

- 10 Carbide indexable inserts R3 (623562000)
Video
