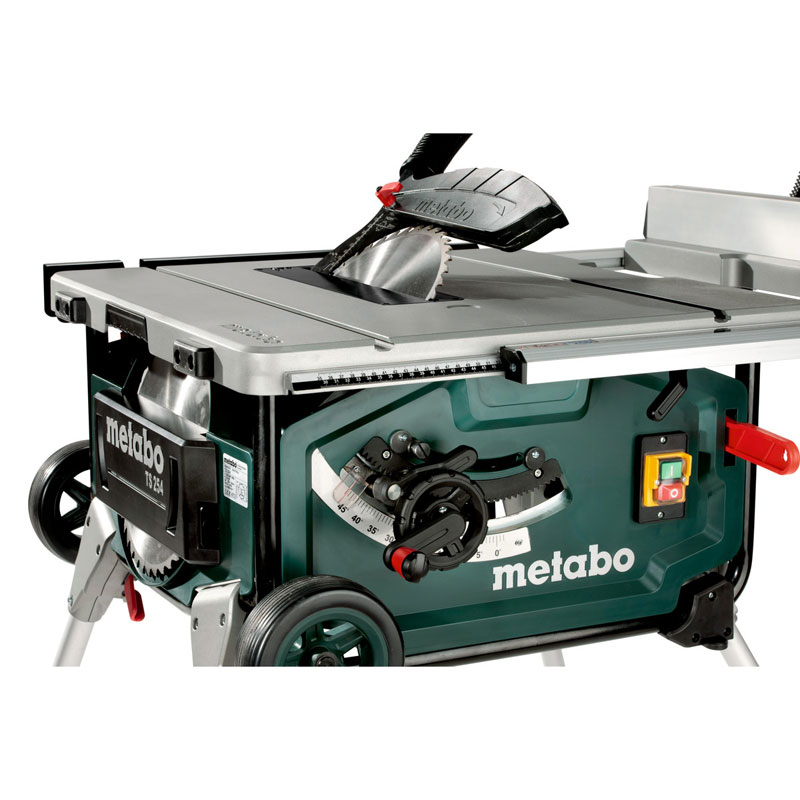

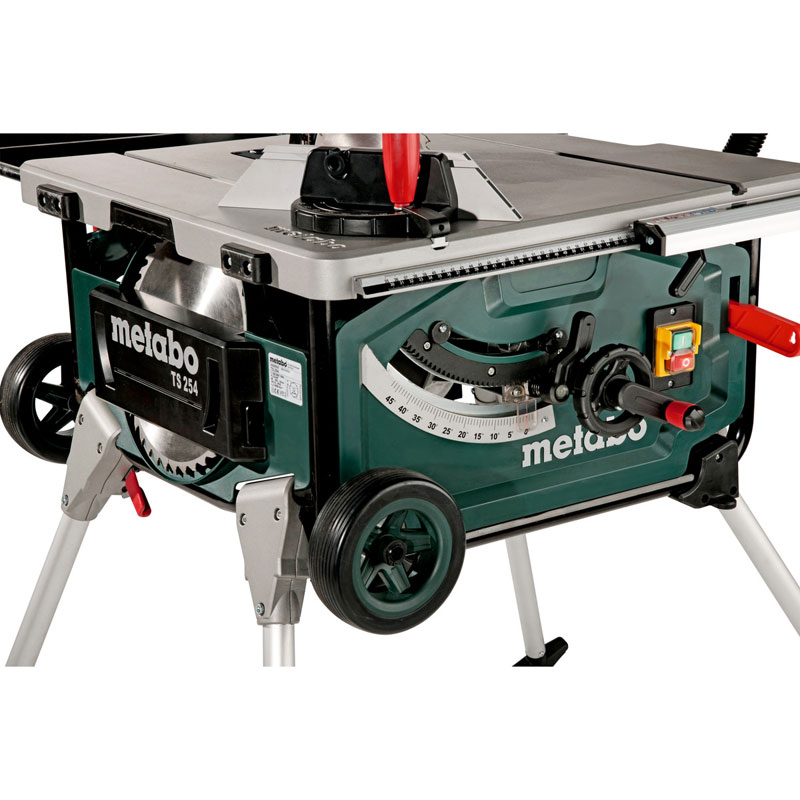

METABO Circular Table Saw TS 254
Features

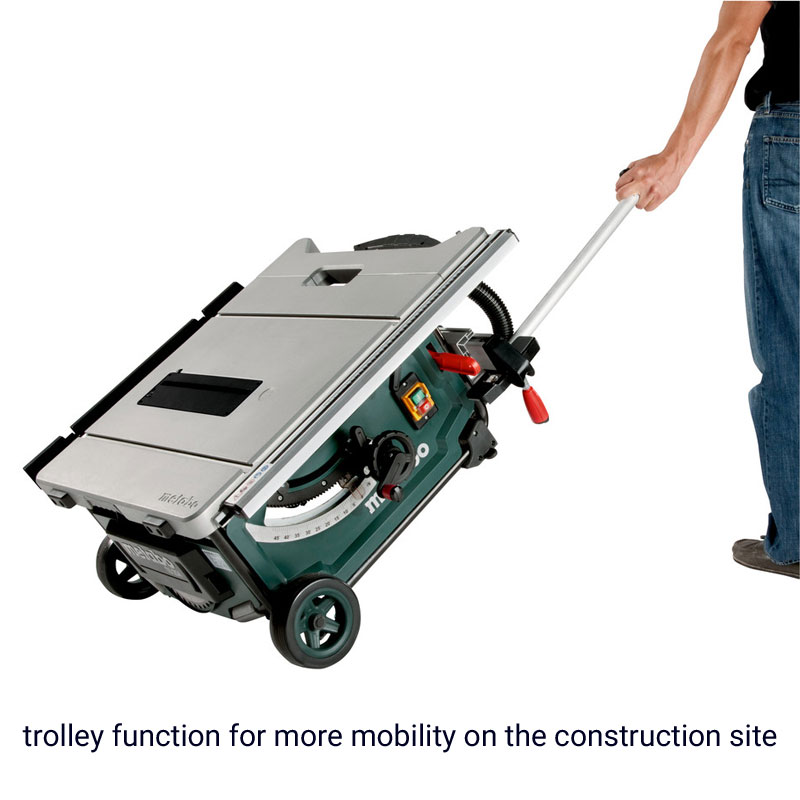

- Extremely light table saw with trolley function for more mobility on the construction site
- Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand
- Very compact with folded stand for comfortable transport and space-saving storage
- Second working height for working near ground level
- Anti-twist tubular frame construction for highest demands on the building site and during installations
- Cables and all add-on components for transport can be stored on the casing
- Powerful motor with electronic overload protection
- Motor brake for quick stop of the saw blade in 3 seconds
- Restart protection: prevents unintentional start-up after power supply interruption
- Soft start for long service life of motor and drive
- Precise parallel guide with double clamping and quick fastening
- Precise saw blade inclination via gear guide
- Automatic resetting to 0 – 45 ° after undercuts
- Easy saw blade change with spindle lock
- Splitting wedge can be lowered without tools for hidden cuts and transport
- Precise, extendable table width extension for extra large working surfaces

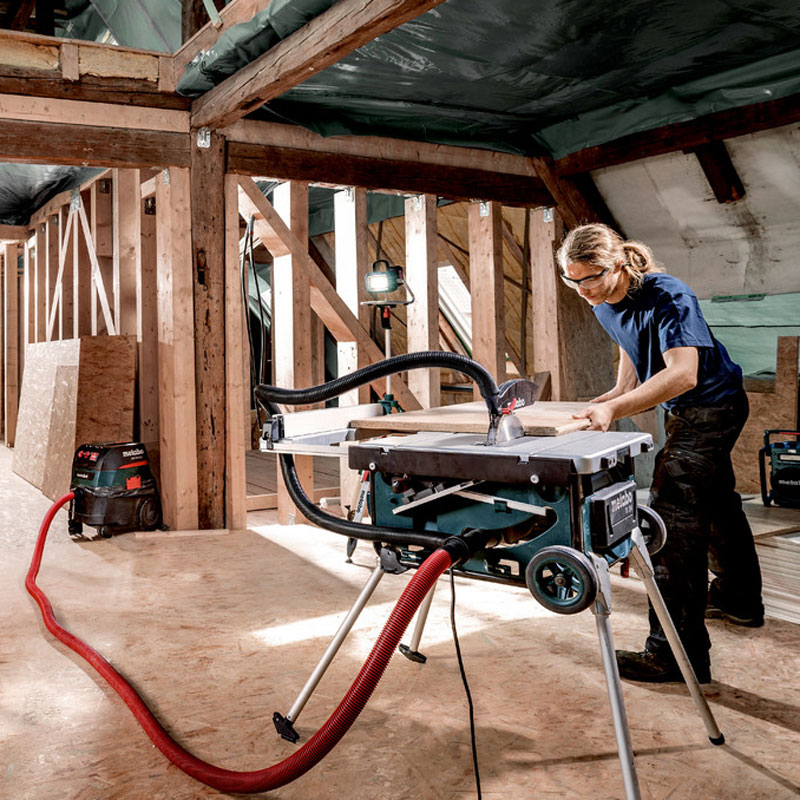

- Dual port dust extraction for low dust emission
Tech Spec
| Model | TS 254 (600668000) |
| Dimensions | 740 x 750 x 355mm | 2.5 x 2.5 x 1.2 ft |
| Max.support surface | 970 x 995 mm |
| Working height | 850/ 355mm | 33 1/2 / 14″ |
| Cutting height | 0 – 87 mm | 0-3 3/8″ |
| Maximum cutting height 90/45 | 87/54 mm | 3 7/16 / 2″ |
| Maximum cutting width at parallel guide / rip fence | 630 mm | 24 3/4″ |
| Maximum material width at mitre fence | 200 mm | 7 7/8″ |
| No-load speed | 4200 rpm |
| Cutting speed | 56 m/s | 184 ft/s |
| Saw blade | 254 x 30 mm | 10 x 1.181″ |
| Saw blade swivel range | -1.5 – 46.5 |
| Rated input power | 2000 W |
| Output power | 1270 W |
| Weight | 33.4 kg | 73.6 lbs |
| Cable length | 3.1 m / 10 ft |
| Noise emission | |
| Sound pressure level | 99 dB(A) |
| Sound power level(LwA) | 112 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
Scope of Delivery
- Carbide saw blade with alternately bevel-ground tips (40 teeth)
- Parallel Guide / Rip Fence
- Mitre Fence
- Table Length Extension
- Table width extension (right)
- Saw blade case
- Chip and Dust Extraction Unit
- Push stick
- Stand
- Hard rubber tyres
