METABO Beveling Tools KFM 16-15 F
Features

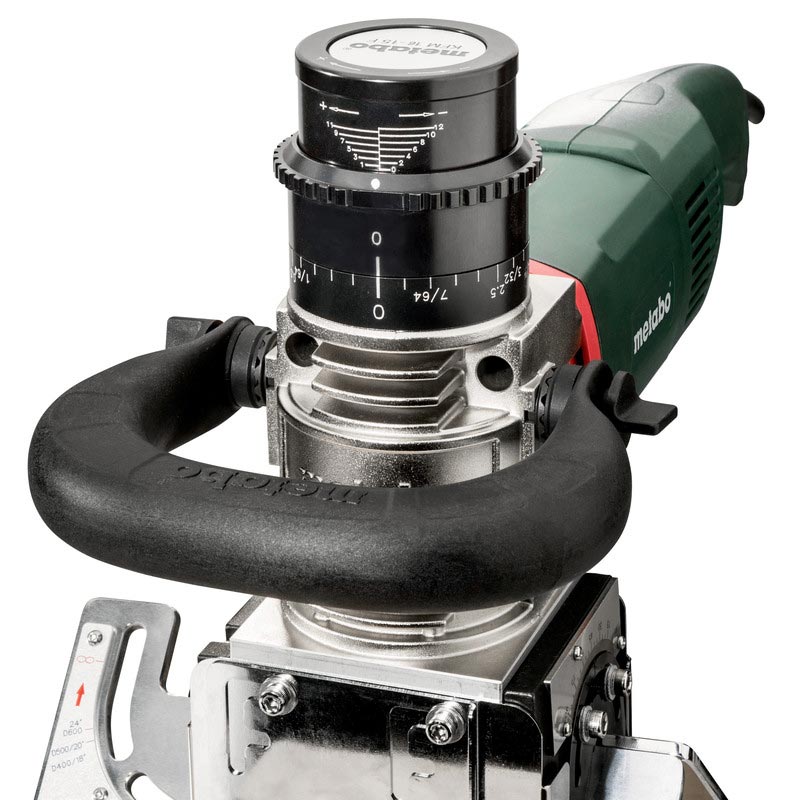

Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation- One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

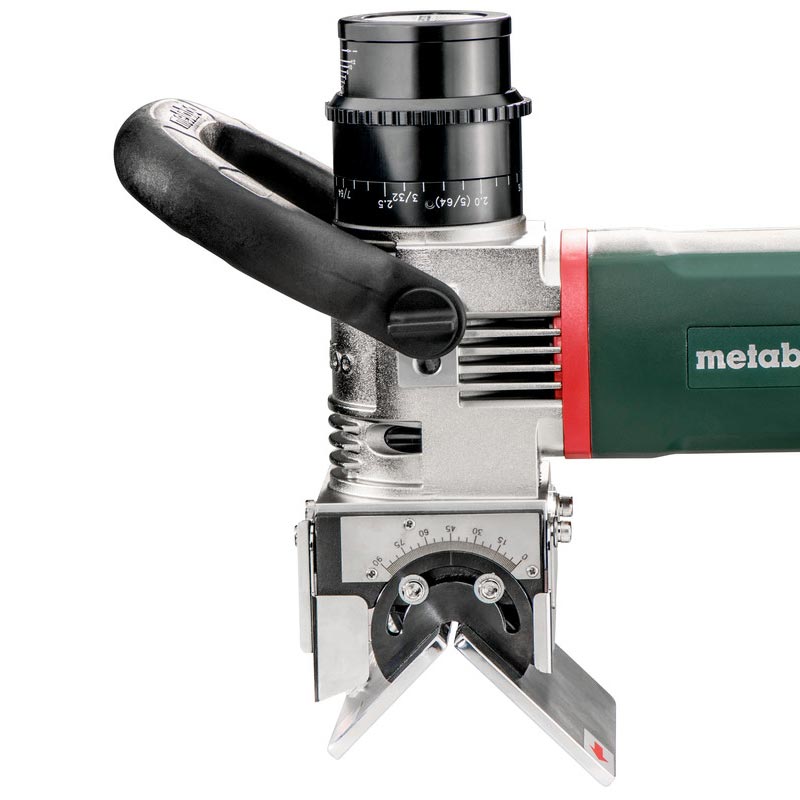

- Precise setting of the chamfer angle directly via the guide plates

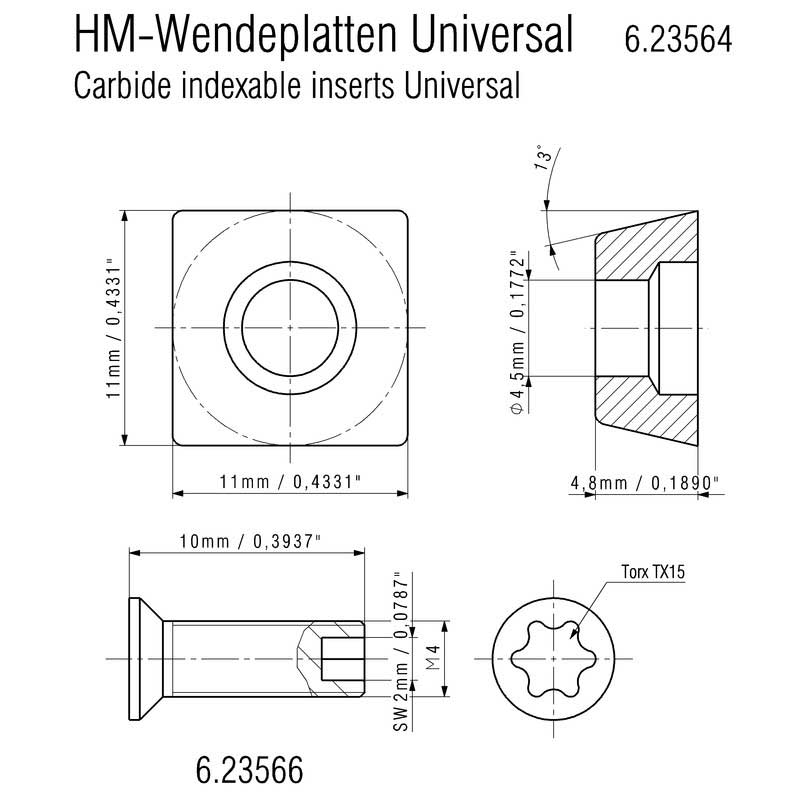

- Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°

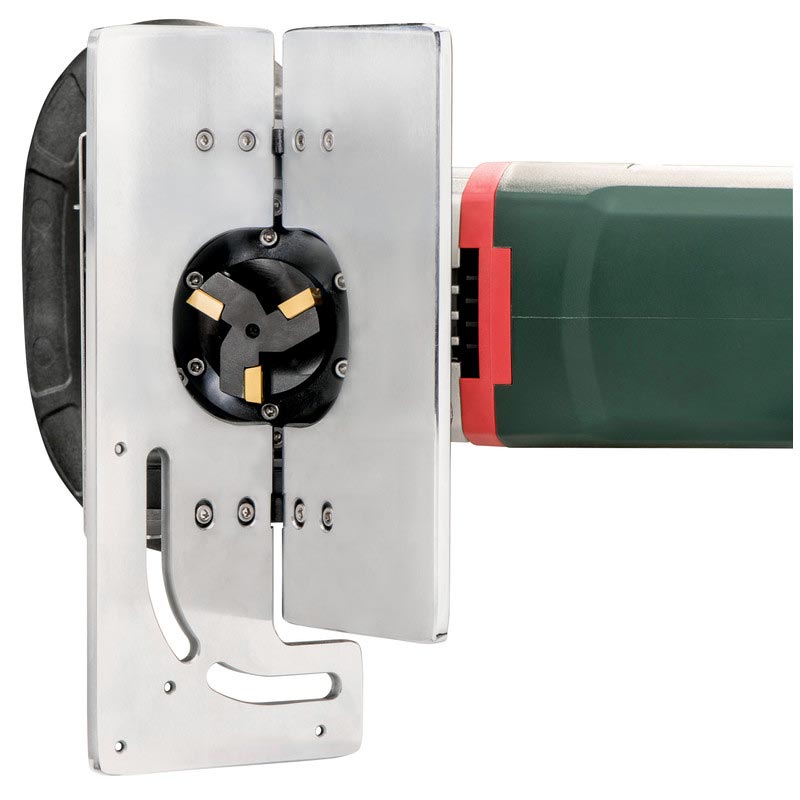

- Controlled working by virtue of large-scale guide plates
- Stop roller to guide along pipes for easy preparation of weld seams
- Front handle for safe and uniform guidance, adjustable without the need for tools
- Metabo Marathon-motor with patented dust protection for long service life
- Electronic overload protection, soft start and restart protection
- Protection of the user by virtue of lateral plates for conveying the chips
Tech Spec
| Model | KFM 16 – 15 F(601753500) |
| No-load speed | 12000 rpm |
| Rated input power | 1600 W |
| Output power | 900 W |
| Type of edges | Chamfer |
| Max. chamfer width 45 | 21 mm | 13/ 16 “ |
| Max. chamfer height at 45 | 15 mm | 19/32″ |
| Grading of cutting depth setting | 0.1 mm |
| Curves smallest outer | 100 mm | 3 15/16″ |
| Weight (without power cable) | 6.9 kg | 15.2 lbs |
| Cable length | 4 m | 157 1/2″ |
| Noise emission | |
| Sound pressure level | 93 dB(A) |
| Sound power level(LwA) | 104 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
Scope of Delivery

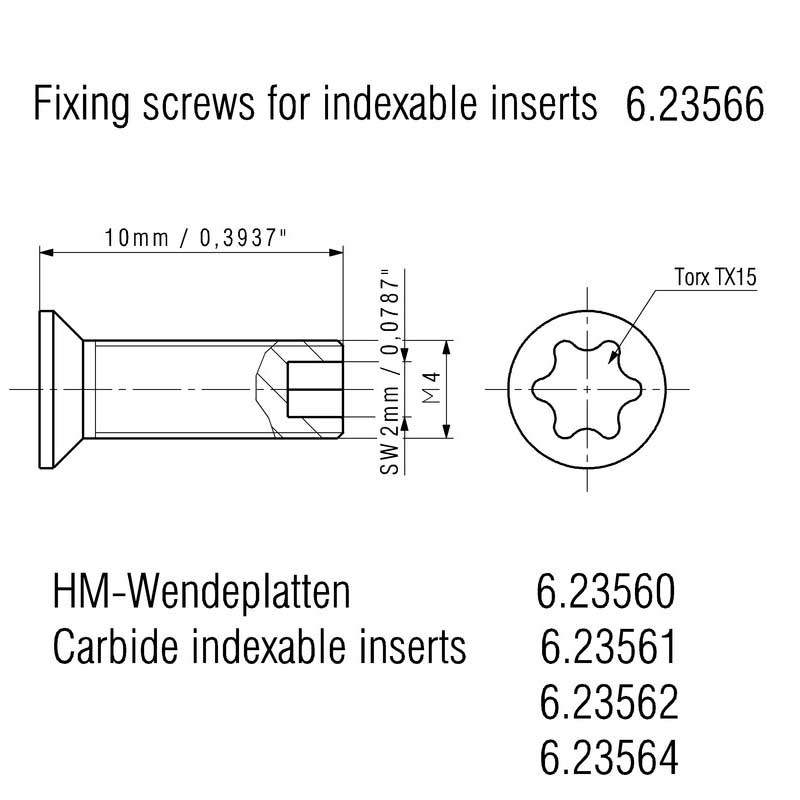

3 Carbide indexable inserts Universal- Screwdriver SW 4 with T-handle
- Open-jawed spanner SW 10
- Open-jawed spanner SW 10
- Metal carry case
- Metal carry case
- Stop roller
- Stop roller
- Screwdriver Torx 15
- Screwdriver Torx 15
- Screwdriver SW 4 with T-handle
