SHIMPO Hand-held Laser Tachometer (PH-200L)
RM2,100.00
Features
Hand-held Laser Tachometer (PH-200L)
1. Easy to read LCD display
2. Built-in memory for Max, Min, Average, Last and 10 seperate readings for recall in display
3. Compact, rugged plastic housing
4. 10 User selectable measuring units

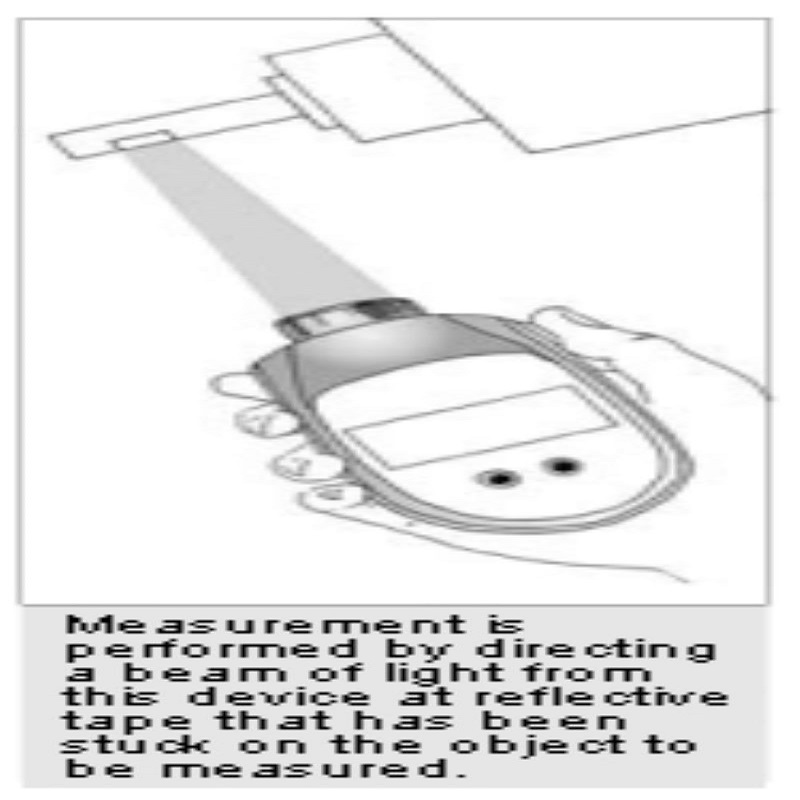

5. Non-Contact Type: Measures revolutions with laser beam
Tech Spec
| MODEL | PH-200L |
|---|---|
| Measuring range | 6.0 ~ 99,999 rpm |
| Measuring Accuracy | 6.0 ~ 599.9 rpm ± 1 rpm |
| 600.0 ~ 99,000 ± 0.006% and ± 0.5 digit | |
| Display Size | 5 digit 12 mm height LCD |
| Memory Function | 14 readings sotred in memory and retained for 5 minutes (Last, Max, Min, Average and 10 selectable measurements) |
| Update Time | 1 second |
| Detection | Laser beam |
| Auto Power Off Function | 5 minutes |
| Batteries | 3 AA 1.5 Volts approx. 35 h continuous use |
| Indicator Low Battery | “LO BAT” display |
| Indicator Over Range | “OVR” display |
| Operating Temperature | 0 ~ 45°C |
| Construction | ABS resin |
| Dimensions | 115.5(L)×64(W)×31.5(H) mm |
| Weight | 160g |
