SHIMPO Hand-held Contact Type Tachometer PH-100A
RM1,700.00
SHIMPO Hand-held Contact Type Tachometer PH-100A

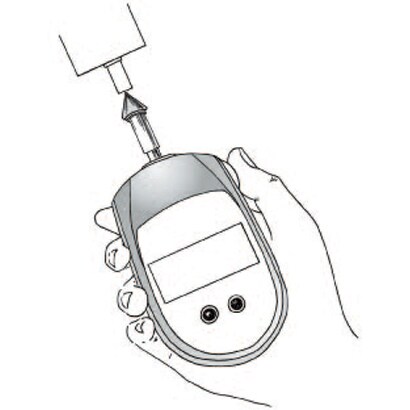

1. Hand-held tachometer PH-100A for contact measuring of revolutions, line speeds and length; the measurement is carried out, as long as the measuring key is pressed
2. For exact measurements of
– revolutions per minute
– total revolutions
– length and velocity with different metric and English units
3. 10 User selectable measuring units (rpm; rev, m/min; in/min; yd/min; ft/min; m; in; ft; yd)
4. Tachometer with big, easy to ready LCD display
5. Hand-held tachometer PH-100A with automatic and manual memory (Max, Min, mean, last reading and 10 separate readings) for recall in display
6. Electricity saving electronic assures a long battery durability
Standard Features:
1. Tachometer with handy and erognomically housing design
2. Easy to use
3. Compact, rugged plastic housing
4. Certificate of Compliance with the order 2.1 according EN 10204 is included
5. Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report
| MODEL | PH-100A |
|---|---|
| Measuring range: (Floating decimal point) | Revolution (contact):1 – 25000 rpm Revolution (counter): 1 – 99999 rev Speed: 0.1 – 3810 m/min; 3 – 99999 in/min; 0.2 – 12500 ft/min; 0.1 – 4167.0 yd/min Length: 0.01 – 99999 m; 1 – 99999 in; 0.1 – 99999 ft; 0.01 – 99999 yd |
| Accuracy | Revolution: 1 – 599 ±1 rpm ±1 Digit 600 – 25000 rpm ±0.01 % of readings ±1 Digit Speed and length: ±0.4% of readings ±1 Digit |
| Measuring units | Revolution: rpm; Total revolution (counter): rev Speed: m/min; ft/min; yd/min; in/min Length: m; in; ft; yd |
| Memory | 14 readings (10 readings, MAX, MIN, mean and last) are stored for 5 minutes after last use |
| Resolution | Length: 0.00762 m/Impulse, |
| Revolution | 20 Impulse/revolution |
| Display | 5 digit LCD 12 mm high |
| Display update | 1 s |
| Over range indicator | ”OVR” flashes at the display |
| Auto power off | After 5 min of non-use |
| Power supply | Battery 3 x 1.5 V Type AA, (approx. 50 h continuous use) |
| Low battery indicator | ”LO BAT” flashes at the display |
| Temperature range | 5 – 45 °C |
| Air humidity | 85 % RH, max. |
| Housing | Polyamide, fiber-reinforced |
| Dimensions | 123 x 64 x 31 mm (LxWxH) |
| Weight, net (gross) | Approx. 180 g (400 g) |
