COME-UP Electric Pull Winch DV-3500i
RM3,750.00
ELECTRIC PULL WINCH – 12V DC 3500 LB/1588 KG (5.9 FT/MIN OR 1.8 M/MIN) (WIRE: 6.3MMX15.2M)
ELECTRIC PULL WINCH – 24V DC 3500 LB/1588 KG (5.9 FT PER MIN/1.8 M/MIN) (WIRE:6.3MMX15.2M)

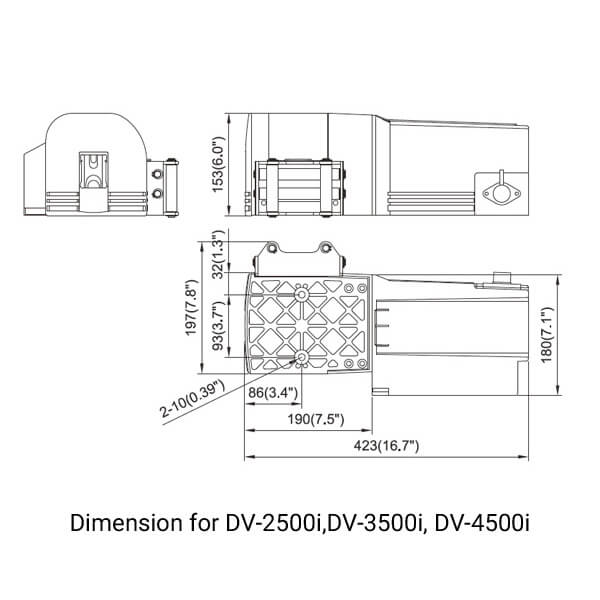

Dimension
Features
Power in and power out- Sliding ramping clutch for rapid wire rope payout
- Circuit breakers shut off winch to prevent overheating of motor
- Weather-resistant plastic housing for extra durability
- Dynamic and mechanical brake holds full load
- Integrated contractor for complete protection wirings
- Compact and light weight allow a wide range of application on trailers and boats
Tech Spec
| Model | DV-3500I |
| Line pull | 1588 kg/ 3500lb |
| Motor (permanent magnet) | 12V 900W/ 1.2 HP 24V 900W/ 1.2HP |
| Gear train | 3 stage planetary gears |
| Gear ratio | 170 : 1 |
| Clutch (free spooling) | Sliding ramping |
| Brade | Automatic load-holding mechanical brake |
| Rope size | 6.3 mm x 15.2 mm |
| Rope type | Galvanized aircraft A7 x 19 |
| Drum size | 54 x 83mm |
| Mounting bolts pattern | 86 x 93 mm |
| Winch weight(include rope) | 13.9 kg |
| Gross weight | 17.9 kg |
| Box dimension (L x D x H) | 462 x 271 x 185 mm |
