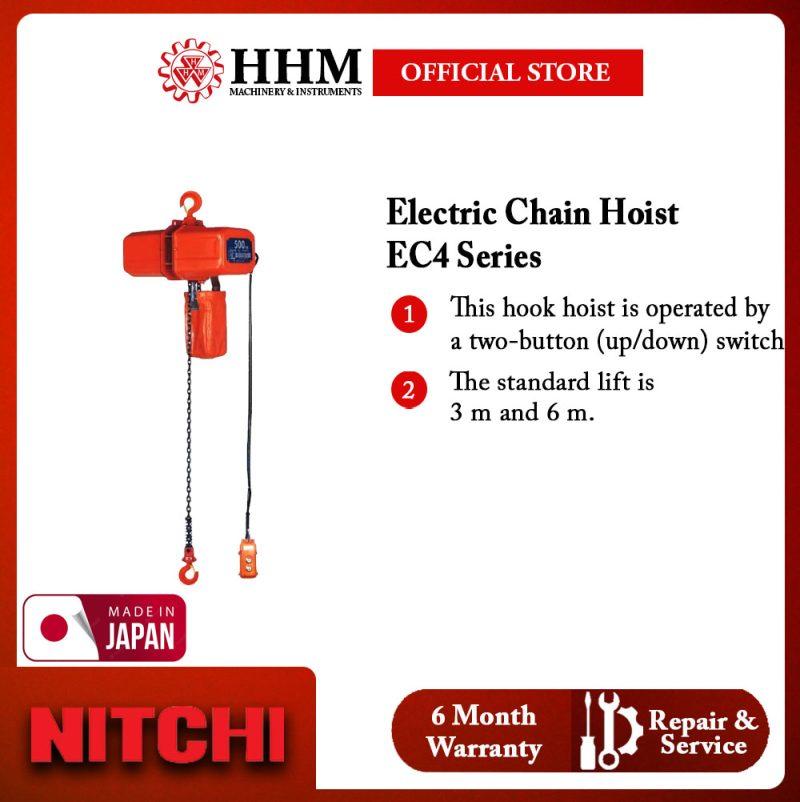

NITCHI Electric Chain Hoist EC4 Series
Tech Spec
NITCHI Electric Chain Hoist EC4 Series
| ITEM NO. | RATED LOAD (TON) | LIFT (M) | LIFTING SPEED (M/MIN) | RATING (MIN) | % ED | LOAD CHAIN | HEAD ROOM (MM) | NET WEIGHT (KG) | GRADE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50HZ | 60HZ | DIA. (MM) | NOS. OF FALLS | ||||||||
| EC40025 | 0.25 | 6.0 | 8.7 | 10.3 | 30 | 40 | 6.3 | 1 | 485 | 38 | M4 |
| EC40050 | 0.5 | 8.6 | 10.1 | 6.3 | 1 | 520 | 41 | ||||
| EC40100 | 1 | 5.6 | 6.6 | 7.1 | 1 | 570 | 52 | ||||
| ECJ4020 | 2 | 2.8 | 3.3 | 7.1 | 2 | 755 | 65 | ||||
